Steering System: Gear: Removal: All-Wheel-Drive

Fig 1: Disconnecting/Connecting Battery Cables
GC0079763Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate battery negative cable (2) from battery post.
  2. Siphon power steering fluid from pump reservoir.
  3. Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    Fig 2: Tire And Wheel Mounting
    GC0079683Courtesy of CHRYSLER GROUP, LLC
  4. Remove wheel mounting nuts (3), then both front tire and wheel assemblies (1).
    Fig 3: Removing/Installing Tie Rods (AWD)
    GC0079781Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    When loosening jam nut and rotating inner tie rod, use care not to twist bellows at inner tie rod. Remove clamp (2) at inner tie rod and make sure bellows moves freely before rotating inner tie rod.

  5. Loosen tie rod jam nut (1) at each outer tie rod (4).
    Fig 4: Tie Rod Attachment AT Knuckle
    GC0079687Courtesy of CHRYSLER GROUP, LLC
  6. Remove outer tie rod (2) end nut (1) at each knuckle (3).

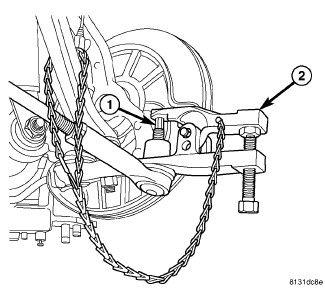

    Fig 5: Using Puller On Outer Tie Rod
    GC0081956Courtesy of CHRYSLER GROUP, LLC
  7. Using Remover (special tool #9360, Remover, Ball Joint) (2), separate outer tie rod (1) from each knuckle.
    Fig 6: Steering Coupling
    GC0080527Courtesy of CHRYSLER GROUP, LLC
  8. Remove lower intermediate shaft coupling pinch bolt (1) at steering gear (3). Separate lower intermediate shaft (2) from steering gear shaft (3).
    Fig 7: Hoses AT AWD Gear
    GC0080536Courtesy of CHRYSLER GROUP, LLC
  9. Unthread return hose tube nut (1) from steering gear (2). Remove return hose from steering gear.
  10. Unthread pressure hose tube nut (3) from steering gear (2). Remove pressure hose from steering gear.
    Fig 8: Rack Assembly And Inner Tie Rod Bellows Heat Shields
    GC0079708Courtesy of CHRYSLER GROUP, LLC
  11. Remove mounting screws, then heat shield (3) above each inner tie rod bellows (2).
    Fig 9: Steering Gear Mounting Bolts
    GC0079709Courtesy of CHRYSLER GROUP, LLC
  12. Remove steering gear upper mounting bolt (4) and nut.
  13. Remove steering gear lower mounting bolts (2 and 3).
  14. Remove steering gear (1).
  15. If necessary, remove outer tie rods from gear. Count number of revolutions off for each tie rod for reference upon installation to replacement gear.
