Sensor, Water In Fuel: Installation: Installation

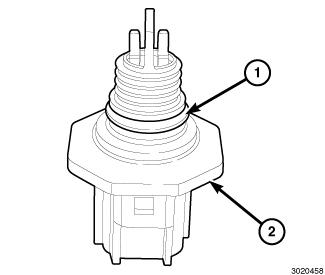

Fig 1: O-Ring Seal & Water In Fuel Sensor

Courtesy of CHRYSLER GROUP, LLC

Clean the O-ring sealing area of housing.
NOTE:
Lubricate the O-ring seal with clean diesel fluid.
Install a new O-ring seal (1) onto Water in Fuel (WIF) sensor (2).

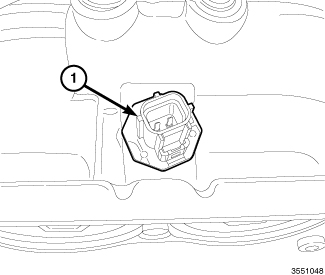

Fig 2: Fuel (WIF) Sensor
Courtesy of CHRYSLER GROUP, LLC
Install the WIF sensor (1) and securely tighten sensor.

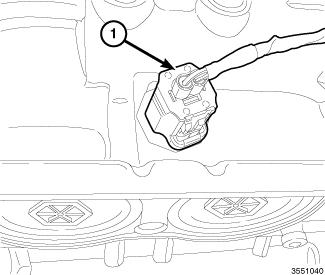

Fig 3: Water In Fuel (WIF) Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the Water In Fuel (WIF) sensor wire harness connector (1).
Lower the vehicle.
Connect the negative battery cable.
