Sensor, Crankshaft Position: Installation: 2.4L

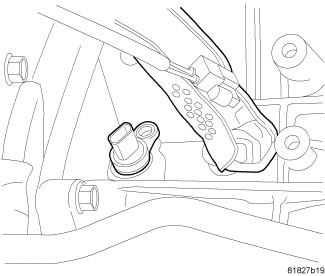

Fig 1: View Of Crankshaft Position Sensor

Courtesy of CHRYSLER GROUP, LLC

1. Check the O-ring for damage and lubricate the O-ring with engine oil before installing the sensor.
2. Use a twisting motion when installing the sensor.
   Fig 2: Crankshaft Position Sensor

   Courtesy of CHRYSLER GROUP, LLC
3. Install and tighten the crankshaft position sensor bolt to 9 N.m (79.5 in. lbs.).
   Fig 3: Electrical Connector To Crankshaft Position Sensor

   Courtesy of CHRYSLER GROUP, LLC
4. Connect and lock the electrical connector to the crankshaft position sensor.
5. Install the heat shield and retaining bolt.
6. Lower the vehicle.
7. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
