Module, Totally Integrated Power (TIPM): Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

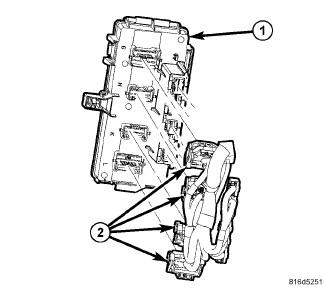

Fig 1: Identifying Electrical Connectors & TIPM

Courtesy of CHRYSLER GROUP, LLC

Position the Totally Integrated Power Module (1) (TIPM) into the vehicle.
NOTE:
Totally Integrated power module electrical connectors are color coded to ease location reference.
Connect the electrical connectors (2) by pushing straight on and rotating the connector arm inboard, until the connector is firmly locked in place on the TIPM assembly (1).

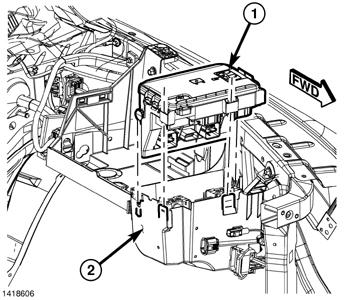

Fig 2: Totally Integrated Power Module (TIPM)
Courtesy of CHRYSLER GROUP, LLC
Turn the TIPM so that the connector side is facing down. Install the assembly onto the TIPM battery tray bracket making sure to line up the lower retaining tab with the retaining slot in the tray.
Push the TIPM (1) downward to lock the upper retaining clips into the bracket (3).

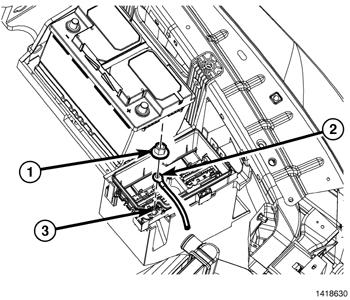

Fig 3: B+ Terminal Cable & Nut
Courtesy of CHRYSLER GROUP, LLC
Install the B+ terminal cable (2) and nut (1) on the B+ terminal of the TIPM (3).
Connect the battery negative cable.
