Center Floor Console

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

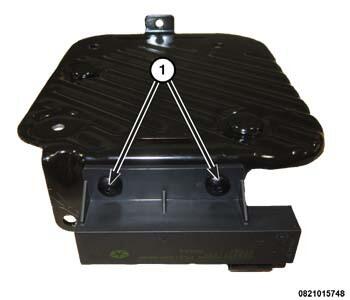

Fig 1: Two Screws Securing LF Antenna To Bracket
GC0158134Courtesy of CHRYSLER GROUP, LLC
  1. Position the LF antenna to the Occupant Restraint Controller (ORC) bracket for installation.
  2. Install the two screws (1) that secure the antenna to the bracket.

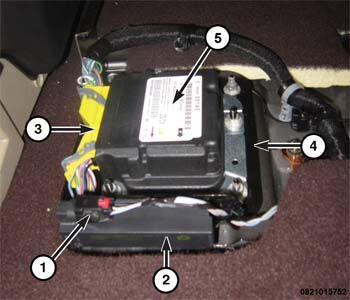

    Fig 2: LF Antenna, ORC Bracket & Controller
    GC0158194Courtesy of CHRYSLER GROUP, LLC
  3. Install the ORC (5), bracket (4), and cover to the vehicle. (Refer to INSTALLATION ).
  4. Connect the LF antenna harness to the LF antenna connector (1).
  5. Install the center floor console to the vehicle. (Refer to INSTALLATION ).
  6. Reconnect the battery cable to the negative battery post.
