Diagnostic Test

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. DTC ACTIVE
    CAUTION:

    Before removing the FDCM harness connector, clean the connector and locking cam area of dirt and debris. Failure to do so can result in the connector being jammed or damage to the locking cams on the harness connector or module. Do not force the assist arm when releasing or installing the harness connector.

    1. Turn the ignition on, engine not running
    2. With the scan tool, read FDCM DTC(s).

      Is the DTC active at this time?

      Yes

      • Go To  2.

      No

      • Go To  5.
  2. DISCONNECTING STABILIZER BAR SWITCH OPERATION
    1. Turn the ignition off.
    2. Disconnect the Disconnecting Stabilizer Switch harness connector.
    3. Remove the Disconnecting Stabilizer Switch.
    4. Measure the resistance on the Disconnecting Stabilizer Switch between the Switch Supply terminal and the Stabilizer Switch Sense terminal.
    5. The resistance must read as follows for each position of the switch.
      • Off Road: 33 Ohms +/- 5%
      • On Road: 510 Ohms +/- 5%
      • Switch Not Applied: 2.2k Ohms +/- 5%

      Does the Ohmmeter read correctly for each position of the Stabilizer Bar Switch

      Yes

      • Go To  3.

      No

      • Replace the Disconnecting Stabilizer Switch.
      • Perform FDCM VERIFICATION TEST. Refer to FDCM VERIFICATION TEST .
  3. (T531) STABILIZER BAR SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND

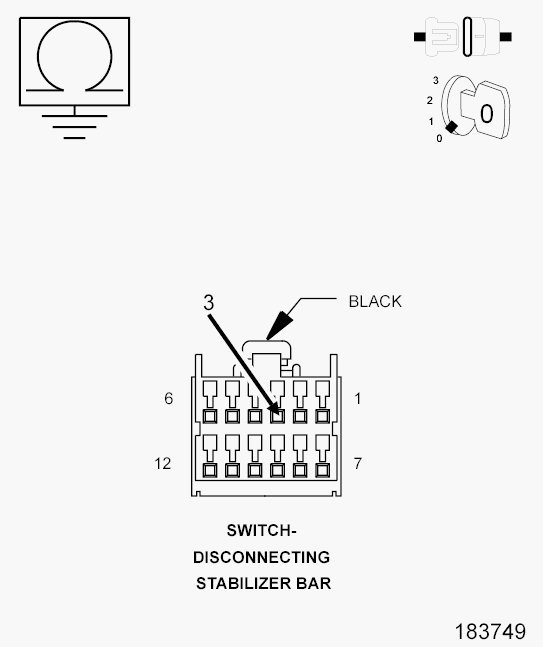

    Fig 1: Checking Stabilizer Bar Switch Sense Circuit For A Short To Ground
    GC0111101Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the FDCM harness connector.
    2. Measure the resistance of the (T531) Stabilizer Bar Switch Sense circuit in the Disconnecting Stabilizer Switch harness connector to ground.

      Is the resistance below 5.0 Ohms?

      Yes

      • Repair the short to ground in the (T531) Disconnecting Stabilizer Switch Sense circuit.
      • Perform FDCM VERIFICATION TEST. Refer to FDCM VERIFICATION TEST .

      No

      • Go To  4.
  4. (T536) SWITCH SUPPLY CIRCUIT SHORT TO GROUND

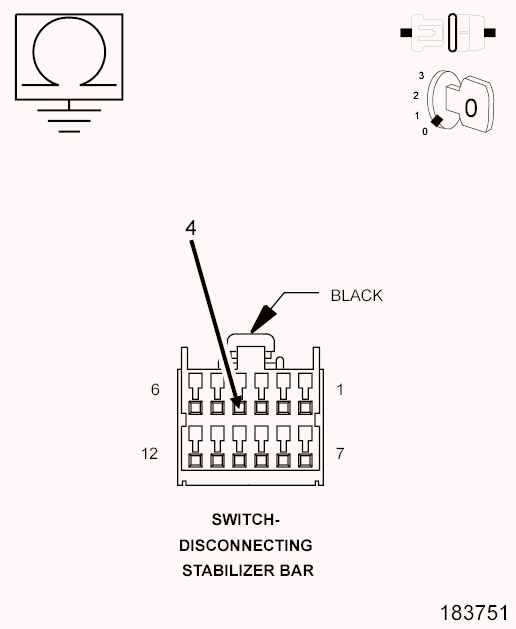

    Fig 2: Checking Switch Supply Circuit Short To Ground
    GC0111102Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (T536) Switch Supply circuit in the Disconnecting Stabilizer Switch harness connector to ground.

      Is the resistance below 5.0 Ohms?

      Yes

      • Repair the short to ground in the (T536) Switch Supply circuit.
      • Perform FDCM VERIFICATION TEST. Refer to FDCM VERIFICATION TEST .

      No

      • Replace the FDCM in accordance with the Service Information
      • Perform FDCM VERIFICATION TEST. Refer to FDCM VERIFICATION TEST .
  5. INTERMITTENT WIRING AND CONNECTORS
    1. The conditions necessary to set this DTC are not present at this time.
    2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
    3. Wiggle test the wiring harness and connectors while checking for shorted and open circuits.
    4. Using the scan tool, monitor the data related to this circuit while performing the wiggle test. Look for the data to change or for the DTC to reset.
    5. While monitoring the Stabilizer Bar State on the scan tool, move the switch to each position. The scan tool display must match the position on the actual switch.

      Were there any problems found?

      Yes

      No

      • Test Complete.
