Module, Memory: Installation: Installation
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The Memory Seat Module (MSM) mounting tabs can be damaged during module installation. Use care to properly align tabs to prevent binding that could result in tab breakage.

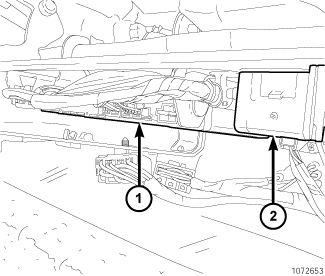

- Place the module (1) into position making sure the mounting tabs are properly aligned with the front bracket.
- Push down on the front of the module (1) snapping the tabs into place in the side brackets.
- Connect the electrical connectors to the MSM. Four in the front and one in the back.
- Connect the battery negative cable.
- Using an appropriate scan tool go to the MSM miscellaneous functions and perform the standardization routine.
- Verify system and vehicle operation.
