Module, Compass: Installation: Installation

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

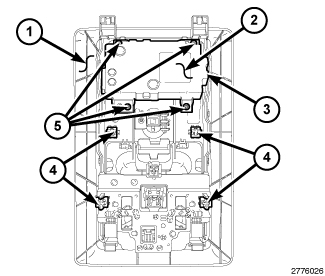

Fig 1: Remote Compass Module
GC0143742Courtesy of CHRYSLER GROUP, LLC
  1. Position the Remote Compass Module (RCM) (2) in the console.
  2. Install the four fasteners (5) that secure the RCM to the overhead console (1).
  3. Install the overhead console assembly. Refer to CONSOLE, OVERHEAD, FRONT, INSTALLATION .
  4. Connect the negative battery cable.
  5. Perform the Compass Variance Adjustment. Refer to MODULE, COMPASS, STANDARD PROCEDURE .
  6. Perform the Manual Compass Calibration. Refer to MODULE, COMPASS, STANDARD PROCEDURE .
  7. Verify proper compass operation.
