Tube, Connecting: Removal: Removal

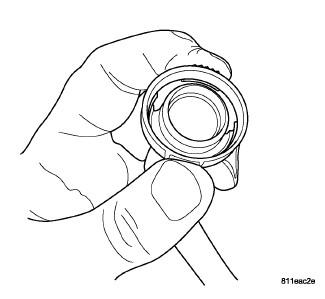

Fig 1: Quick Connect Fitting

Courtesy of CHRYSLER LLC

Remove the engine cover.
To release the connecting tube, squeeze the quick connect fitting as shown in illustration.

Fig 2: Purge Line Retainer & Connecting Tube
Courtesy of CHRYSLER LLC
Disengage the purge line retainer (2) from the connecting tube (1).
Disconnect and remove the connecting tube (1) from the air pump and the one way check valve.
The connecting tube O-rings can be reused if not damaged.
