P0934-Line Pressure Sensor Circuit Low: Notes

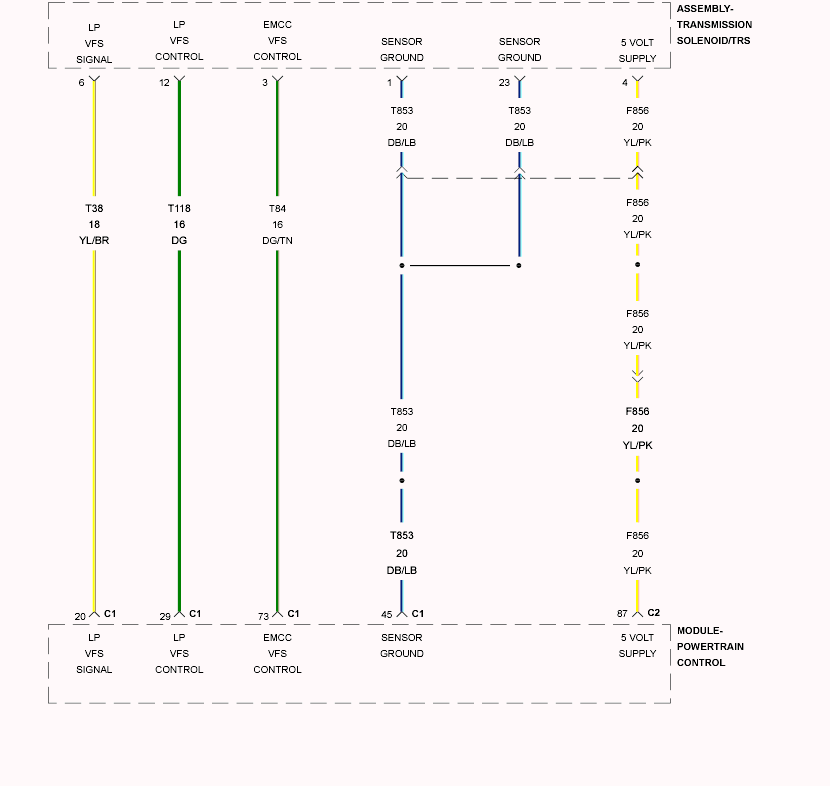

Fig 1: Line Pressure/Variable Force Solenoid Circuit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
