P0765-UD Solenoid Circuit: Notes

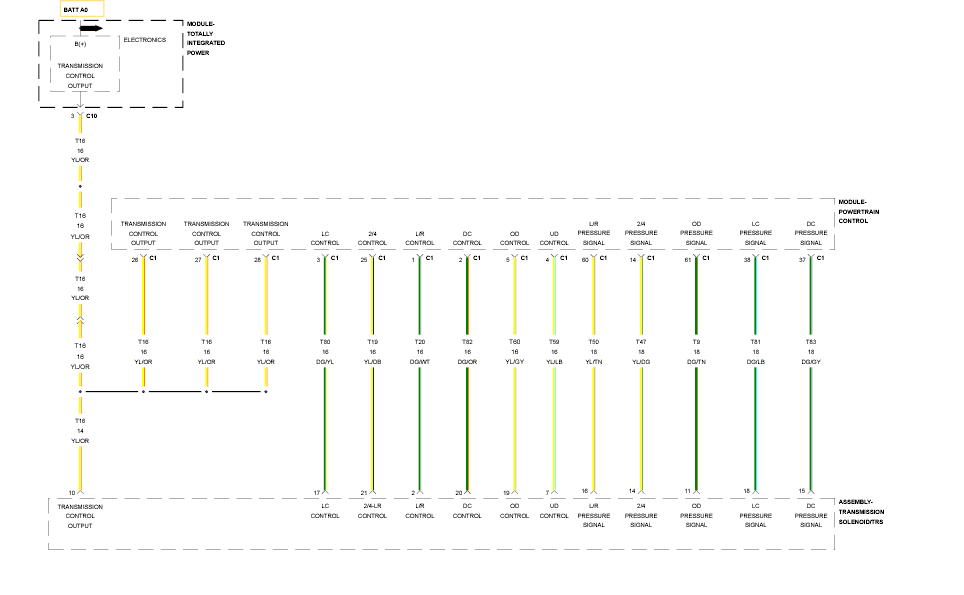

Fig 1: Transmission Solenoid Control Wiring Diagram

GC0150216

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
