Module, Blind Spot: Removal: Removal

WARNING: This page is about a different car, the 2011 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

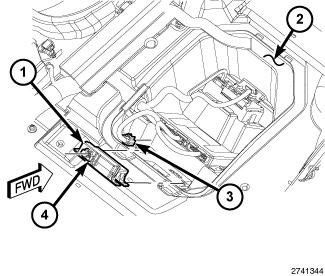

Fig 1: Blind Spot Module
GC0145733Courtesy of CHRYSLER LLC
  1. Position the left front seat to its full forward position.
  2. Disconnect and isolate the negative battery cable, for battery location and disconnect procedure. Refer to CABLES, BATTERY, REMOVAL .
  3. Remove the cover panel from the electronic module tub (2) to access the blind spot module (1).
  4. Disconnect the body wire harness connector (3) from the module connector receptacle (4).
  5. Release integral latches that secures the module to the mounting bracket and slide the module upward.
  6. Remove the module from the vehicle.
