Damper, Vibration: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

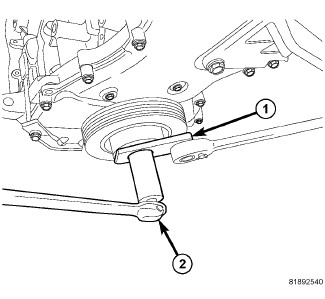

Fig 1: Removing/Installing Crankshaft Damper
GC0121457Courtesy of CHRYSLER LLC
  1. Install crankshaft damper.
  2. Apply clean engine oil crankshaft damper bolt threads and between bolt head and washer. Tighten bolt to 210 N.m (155 ft. lbs.).
  3. Install accessory drive belts. Refer to BELT, SERPENTINE, INSTALLATION .
