Checking The Map Sensor Performance - GPEC: Notes

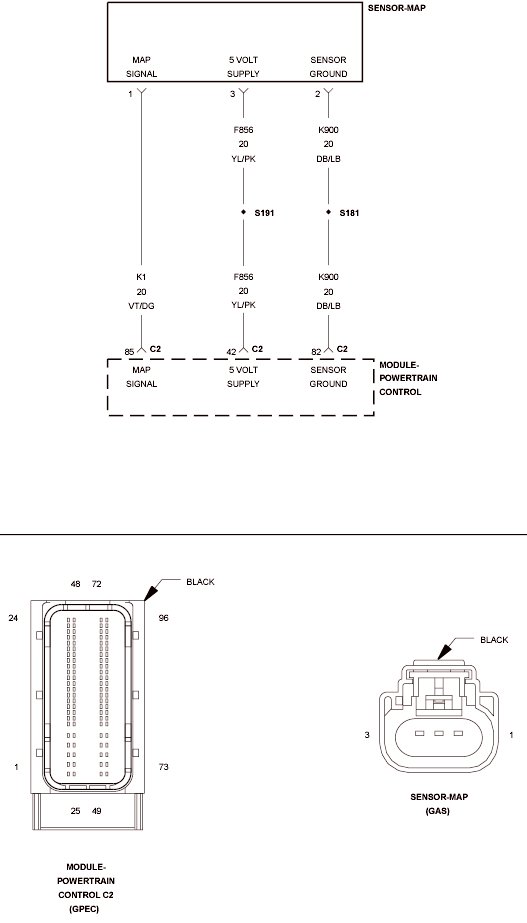

Fig 1: MAP Sensor Circuit Schematic

GC0123817

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
