Diesel Engine

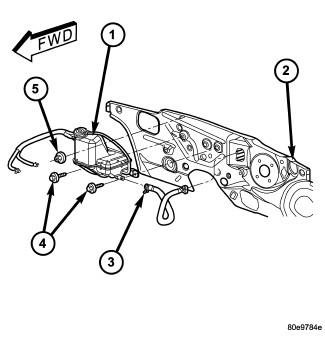

| 1 - COOLANT RECOVERY PRESSURE CONTAINER |
| 2 - DASH PANEL |
| 3 - COOLANT HOSE |
| 4 - RETAINING BOLTS |
| 5 - RETAINING NUT |
- Lower container into engine compartment and connect coolant hose (3) at bottom of container (1).
- Position container on dash panel, install retaining bolts (4 and 5). Tighten retaining bolts securely.
- Connect coolant bypass hose to coolant recovery pressure container.
- Reposition fuel filter heater and install mounting bolts.
- Install oil separator and connect hose.
- Install engine cover.
- Refill cooling system. See Cooling - Standard Procedure .
- Install engine cover. Refer to Engine - Installation .
- Connect negative battery cable.
