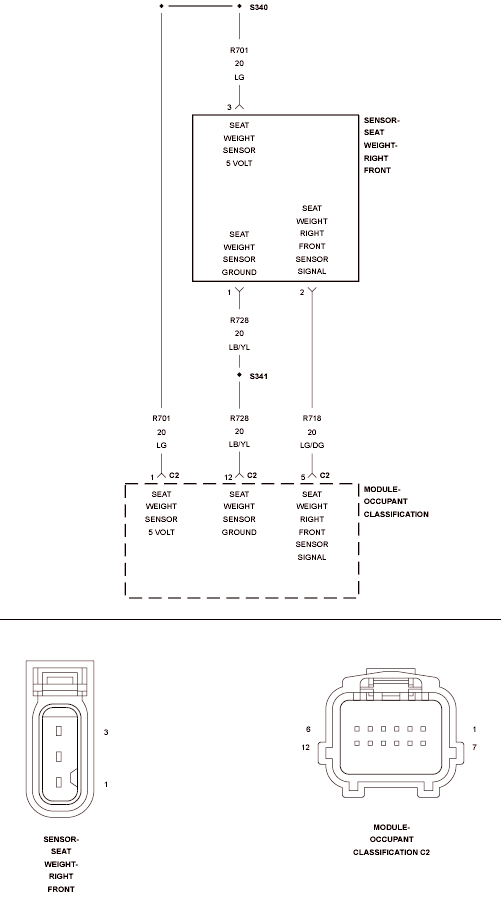

Home >> Chrysler >> 2010 >> PT Cruiser >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Occupant Classification Module (OCM) - Electrical Diagnostics >> DTC Troubleshooting >> B1B7F-Passenger Seat Weight Sensor 2 - Right Front Input Circuit High >> Circuit Schematic
