No Crank Condition: Notes

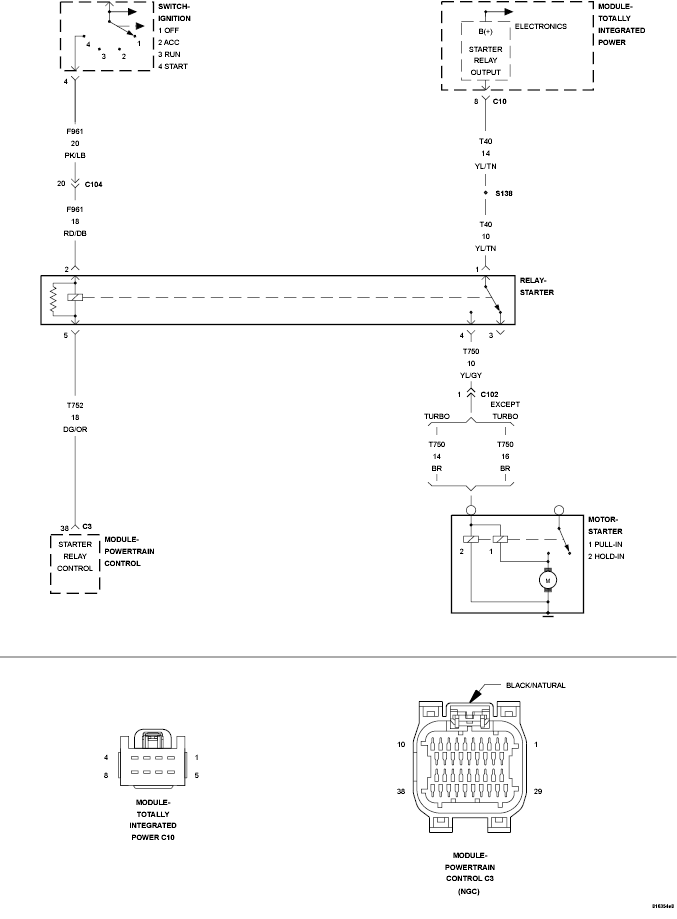

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
| Possible Causes |
|---|
| MECHANICAL CONDITION |
| BATTERY CIRCUIT RESISTANCE TOO HIGH |
| (F961) FUSED IGNITION SWITCH OUTPUT CIRCUITS |
| FUSED B+ CIRCUIT OPEN |
| (T752) STARTER RELAY CONTROL CIRCUIT OPEN |
| (T750) STARTER RELAY OUTPUT CIRCUIT OPEN |
| TRANSMISSION RANGE SENSOR |
| STARTER RELAY |
| STARTER |
