Checking The Cooling Fan Performance: Notes

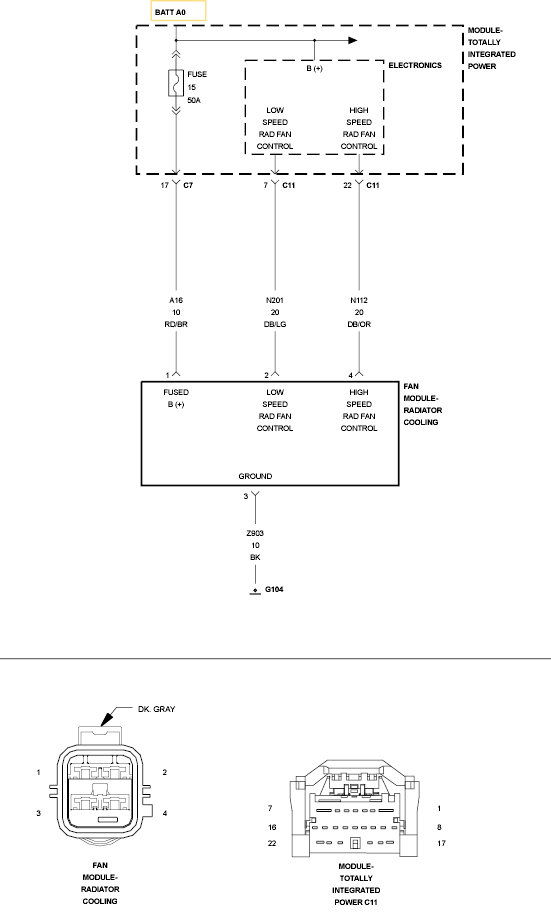

Fig 1: Cooling Fan Circuit

GC0117266

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
