SENSOR, Accelerator Pedal Position: Description: Description

The Accelerator Pedal Position Sensor (APPS) is a variable resistor that provides the PCM with an input signal (voltage). The signal represents throttle blade position. As the position of the accelerator pedal changes, the resistance of the APPS changes.

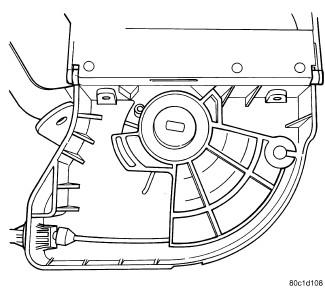

Fig 1: Apps Module

Courtesy of CHRYSLER LLC

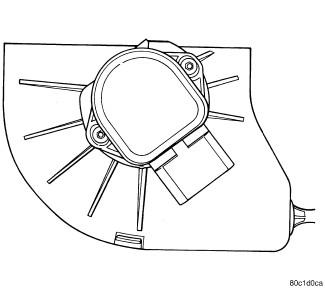

Fig 2: Apps Module Open

Courtesy of CHRYSLER LLC
