Steering Systems

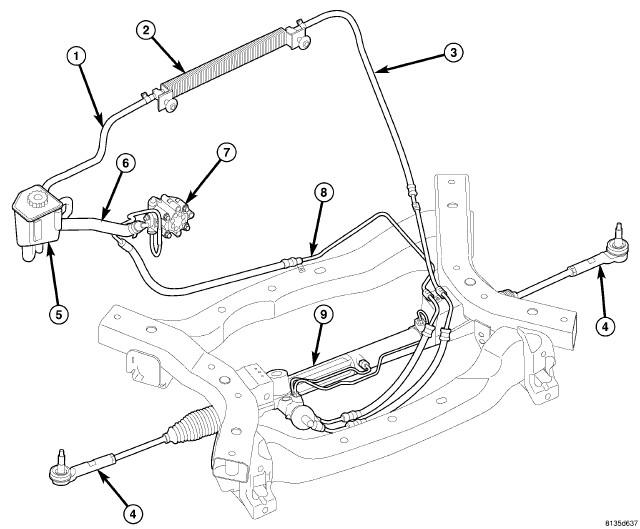

Fig 1: RWD POWER STEERING SYSTEM

GC0095780

Courtesy of CHRYSLER LLC

RWD Power steering systems consist of:

Steering column
Rack and pinion steering gear (9)
Belt driven hydraulic steering pump (7)
Pump pressure (8), return (1 and 3) and supply (6) hoses
Oil Cooler (2)
Remote Reservoir (5)
Inner and Outer tie rod ends (4)

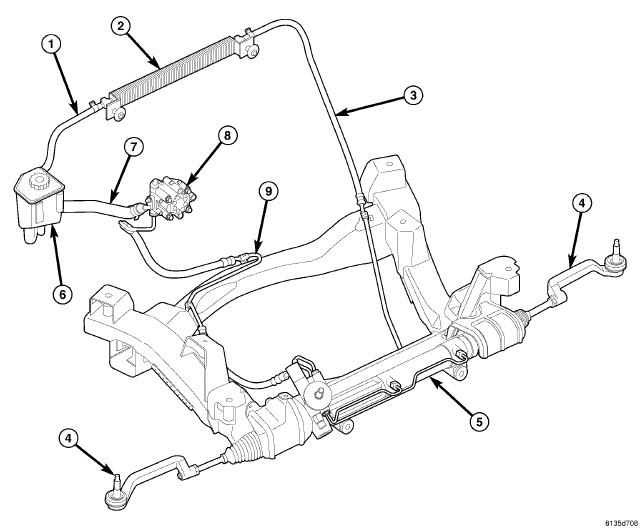

Fig 2: AWD POWER STEERING SYSTEM

GC0095781

Courtesy of CHRYSLER LLC

AWD Power steering systems consist of:

Steering column
Rack and pinion steering gear (5)
Belt driven hydraulic steering pump (8)
Pump pressure (9), return (1 and 3) and supply (7) hoses
Oil Cooler (2)
Remote Reservoir (6)
Inner and Outer tie rod ends (4)
