Column - Column Shift

WARNING: Before servicing the steering column the airbag system must be disarmed. Refer to restraint system for service procedures.SERVICE INFORMATION Failure to do so may result in accidental deployment of the airbag and possible personal injury.

CAUTION: All fasteners must be torqued to specification to ensure proper operation of the steering column.

Position the front wheels straight-ahead .
Disconnect the negative (ground) cable from the battery.

Fig 1: DRIVER AIRBAG REMOVAL & INSTALLATION
Courtesy of CHRYSLER LLC
Remove the airbag (3). Refer to Restraints/AIR BAG, Driver - Removal .

Fig 2: STEERING WHEEL MOUNTING - RHD
Courtesy of CHRYSLER LLC
Remove the steering wheel retainer bolt (2), then slide the steering wheel (3) off the steering column (1) shaft.
Remove the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Removal

Fig 3: REINFORCEMENT I/P STEERING COLUMN
Courtesy of CHRYSLER LLC
Remove the steering column opening reinforcement (1).

Fig 4: CLOCKSPRING SCREWS
Courtesy of CHRYSLER LLC
Loosen at least one clockspring screw (1) to prevent the clockspring from unwinding.

Fig 5: SCCM SCREW
Courtesy of CHRYSLER LLC
Back out the set screw (1) through the access hole (3) in the steering column control module (SCCM) (2) securing the multi-function SCCM assembly.

Fig 6: SCCM R/I
Courtesy of CHRYSLER LLC
Pull the SCCM assembly (1) off the steering column shaft.

Fig 7: AUTOSTICK WIRING CONNECTOR
Courtesy of CHRYSLER LLC
Disconnect the 10-Way electronic shift module wiring connector (4).
Disconnect the autostick wiring connector (1).
Remove the wiring tie strap (2) securing the autostick wiring to the column.

Fig 8: GEAR SHIFT LEVER BOOT
Courtesy of CHRYSLER LLC
Unsnap the gear shift lever boot (2) from the cluster bezel (3). Slide the boot up the gear shift lever (1), away from the bezel.

Fig 9: GEAR SHIFT LEVER MOUNTING SCREW
Courtesy of CHRYSLER LLC
Remove the gear shift lever mounting screw (1).
Slide the gear shift lever (2) out of the column shift mechanism.
Remove the cluster bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Removal

Fig 10: UNLATCH TILT LEVER FROM COLUMN
Courtesy of CHRYSLER LLC

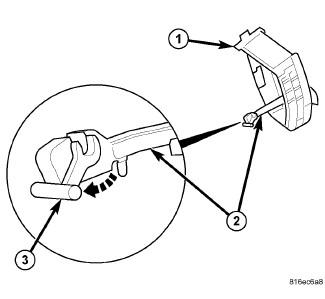

Unsnap and move the adjustment handle locking tab (3) forward as shown in illustration unlatching the handle (2) from the column.

Fig 11: ROLL TOP SHROUD
Courtesy of CHRYSLER LLC

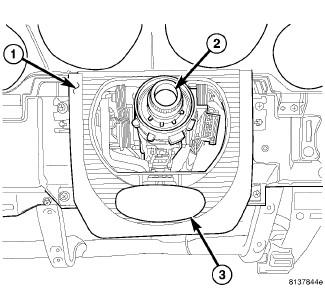

Remove the three roll top shroud mounting screws and remove the roll top shroud (1) along with the manual tilt/telescope handle (3).

Fig 12: RETAINING NUTS
Courtesy of CHRYSLER LLC

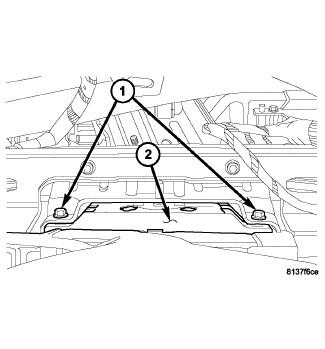

Remove the two retaining nuts (1) at the bulkhead (2) for the steering column.
Remove the instrument cluster assembly. Refer to Electrical/Instrument Cluster - Removal

Fig 13: REMOVING WIRING HARNESS CONNECTOR
Courtesy of CHRYSLER LLC

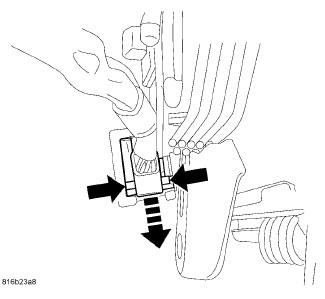

Depress the tabs on the rear of the column wiring harness connector and remove the connector from the steering column.

Fig 14: SHIFT CABLE AT COLUMN
Courtesy of CHRYSLER LLC
If present, remove the tie strap at the mounting bracket (3).
Disconnect the shift cable (2) at the shift mechanism (1).
Remove the shift cable (2) from the mounting bracket (3).
Raise and support the vehicle. Refer to Vehicle Quick Reference/Hoisting - Standard Procedure

Fig 15: RETAINING NUTS
Courtesy of CHRYSLER LLC

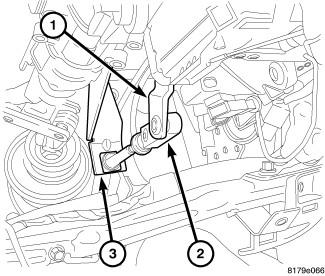

Remove the pinch bolt (4) at the lower coupling shaft (5).
Slide the steering shaft (3) out of the lower coupling shaft (5).
Lower vehicle.

Fig 16: BOLT AT LOWER PART OF COLUMN
Courtesy of CHRYSLER LLC

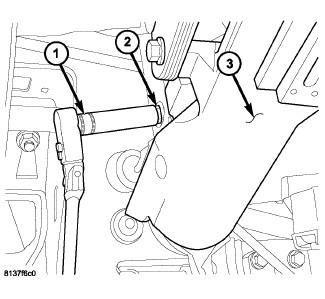

Remove the lower steering column mounting pivot bolt and nut (2).

Fig 17: UPPER COLUMN MOUNTING BOLTS
Courtesy of CHRYSLER LLC

CAUTION: When handling the steering column use care to avoid holding the column by any part of the tilt/telescope mechanism or by the shaft boot. The column should be held by its mounting bracket and the shaft by the exposed portions.
Remove the two upper mounting screws (1) from the steering column (2).
Remove the steering column assembly from the vehicle.
If necessary, transfer any parts to the new column.
