MODULE, Steering Column Control: Disassembly: Disassembly

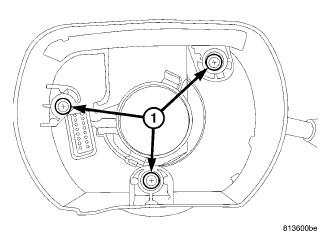

Fig 1: CLOCKSPRING SCREWS

Courtesy of CHRYSLER LLC

WARNING: To service any component of the SCCM, the entire assembly must be removed from the column. This must be done due to the clockspring passing through the assembly and into the self docking connector. Failure to remove the assembly could damage the pins of the clockspring and prevent the airbag system from operating properly.

NOTE: The Electronic Stability Control (ESC) may also be referred to as Electronic Stability Program (ESP) depending on the vehicle model year and configuration. Certain components may also reference ESP, ESC, or use the traction control symbol.

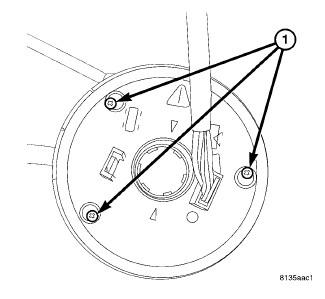

1. Loosen the three clockspring screws (1) just far enough to release the clockspring from the SCCM. Leave them in the clockspring so it won't unwind.
   Fig 2: CLOCKSPRING

   Courtesy of CHRYSLER LLC
2. Carefully pull straight up on clockspring to remove.
   NOTE: After the clockspring is removed, there is only one more screw on the top side of the SCCM that needs to be removed and is located at approximately the six o'clock position on the SCCM. It holds the lower side of the steering angle sensor, the lower side of the electric tilt lever assembly, or the strengthening strut if not equipped with electric tilt.
   Fig 3: STEERING ANGLE SENSOR

   Courtesy of CHRYSLER LLC
3. If equipped with ESC  , remove the steering angle sensor screw located at the six o'clock position on the SCCM and remove the steering angle sensor (1) from the SCCM (2). If not equipped with ESC  , there will be a plastic insert there for strengthening of the SCCM that will lift right out.
   Fig 4: STRUT UNDER ESP

   Courtesy of CHRYSLER LLC

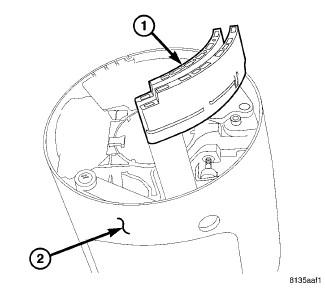

4. If equipped with manual telescoping column  , remove the strut screw, located at the six o'clock position, and strut (1).
   Fig 5: SCCM STALKS

   Courtesy of CHRYSLER LLC

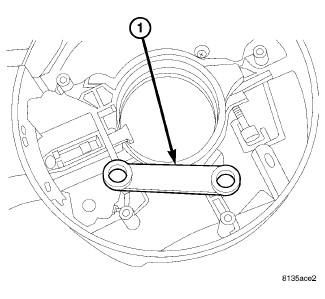

5. If equipped with electronic telescoping column  , remove the one remaining screw (4) to electric tilt located at the six o'clock position, and remove stalk and switch (3).
   Fig 6: SPEED CONTROL FROM SCCM

   Courtesy of CHRYSLER LLC
6. Remove the speed control switch (1).
   Fig 7: MULTIFUNCTION REAR

   Courtesy of CHRYSLER LLC
7. Remove the three screws (1) at the bottom of the SCCM shroud for the multi-function switch and Steering Control Module (SCM).

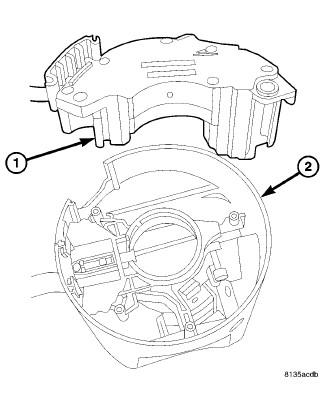

   Fig 8: MULTIFUNC FROM CIRCUIT BOARD

   Courtesy of CHRYSLER LLC
8. Separate the multi-function switch from the SCM.
