Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: HVAC Unit

G00358911

Courtesy of CHRYSLER LLC

Fig 2: Left "A" Pillar

G00358920

Courtesy of CHRYSLER LLC

Fig 3: Driver Seat

G00358923

Courtesy of CHRYSLER LLC

Fig 4: Headliner

G00358934

Courtesy of CHRYSLER LLC

Fig 5: Headliner

G00358935

Courtesy of CHRYSLER LLC

Fig 6: Trunk (Except Magnum)

G00364063

Courtesy of CHRYSLER LLC

Fig 7: Trunk Battery

G00358942

Courtesy of CHRYSLER LLC

Fig 8: Rear Fascia

G00450323

Courtesy of CHRYSLER LLC

Fig 9: HVAC Unit

G00359201

Courtesy of CHRYSLER LLC

Fig 10: Front Of Vehicle

G00450332

Courtesy of CHRYSLER LLC

Fig 11: Dash

G00450333

Courtesy of CHRYSLER LLC

Fig 12: Right Front Of Engine Compartment

G00457461

Courtesy of CHRYSLER LLC

Fig 13: Right Front Of Engine Compartment

G00457462

Courtesy of CHRYSLER LLC

Fig 14: Right Side Of Engine Compartment

G00457463

Courtesy of CHRYSLER LLC

Fig 15: Right Inner Fender Shield

G00457464

Courtesy of CHRYSLER LLC

Fig 16: Left Rear Of Engine Compartment

G00457465

Courtesy of CHRYSLER LLC

Fig 17: Instrument Panel

G00457467

Courtesy of CHRYSLER LLC

Fig 18: Body Left Front

G00457469

Courtesy of CHRYSLER LLC

Fig 19: Body Right Front

G00457470

Courtesy of CHRYSLER LLC

Fig 20: Passenger Seat

G00457471

Courtesy of CHRYSLER LLC

Fig 21: Body Right Side

G00457473

Courtesy of CHRYSLER LLC

Fig 22: Right Rear & PDC

G00457476

Courtesy of CHRYSLER LLC

Fig 23: Deck Lid

G00457477

Courtesy of CHRYSLER LLC

Fig 24: Top Of Engine (2.7L & 3.5L)

G00466855

Courtesy of CHRYSLER LLC

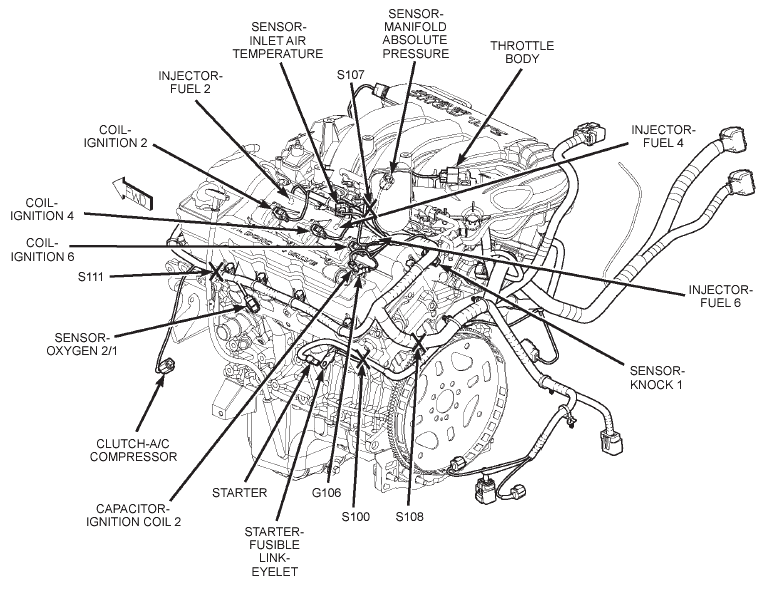

Fig 25: Top Of Engine (2.7L & 3.5L)

G00508264

Courtesy of CHRYSLER LLC

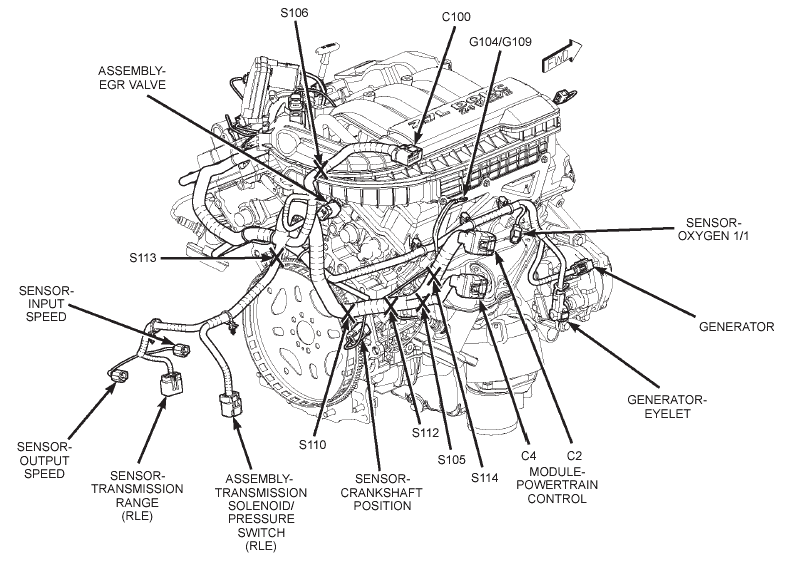

Fig 26: Right Rear Of Engine (2.7L & 3.5L)

G00508265

Courtesy of CHRYSLER LLC

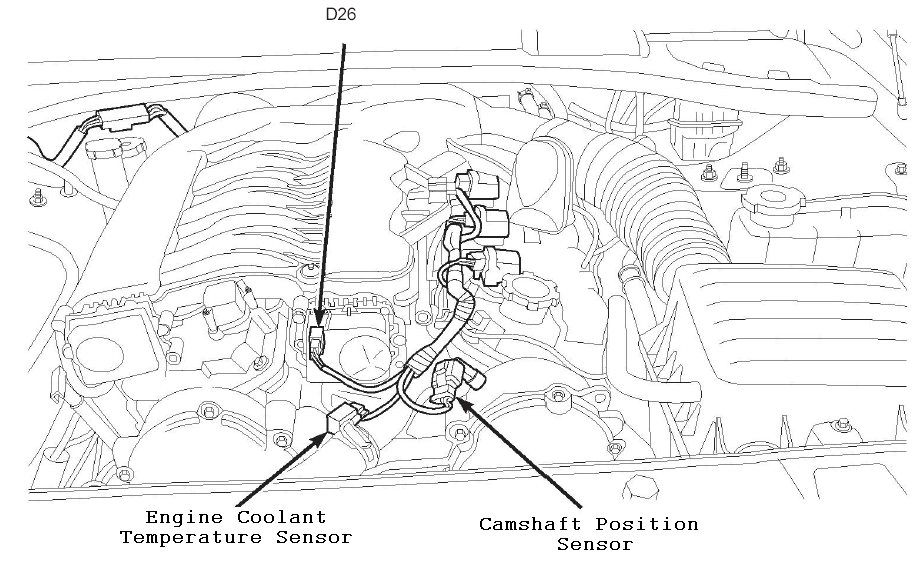

Fig 27: Front Of Engine (2.7L & 3.5L)

G00508266

Courtesy of CHRYSLER LLC

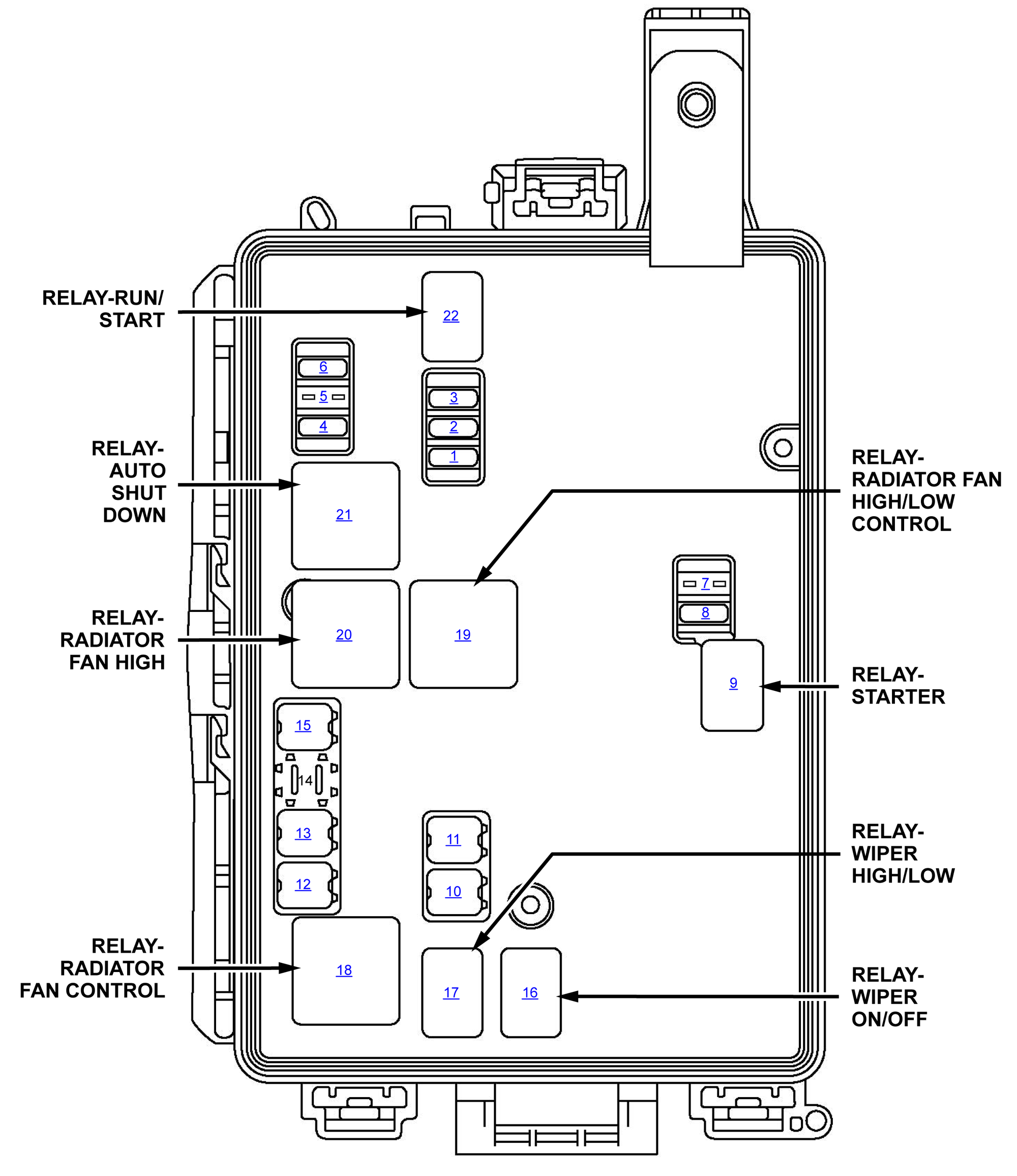

Fig 28: Totally Integrated Power Module

G00508267

Courtesy of CHRYSLER LLC

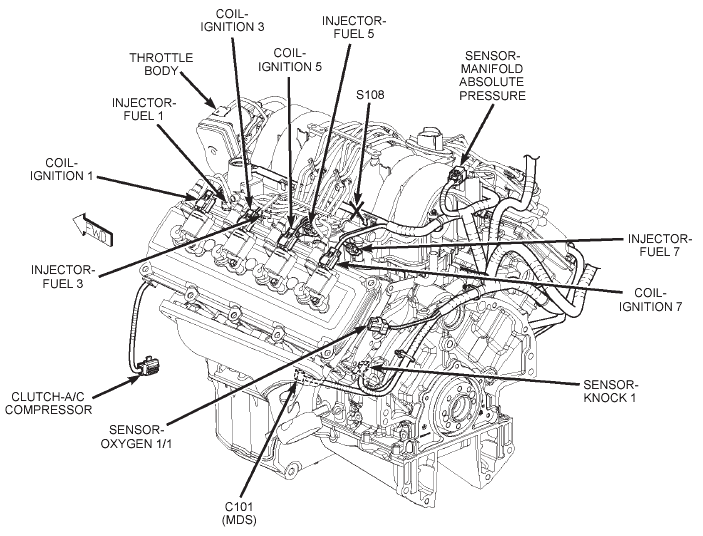

Fig 29: Left Side Of Engine (5.7L & 6.1L)

G00508268

Courtesy of CHRYSLER LLC

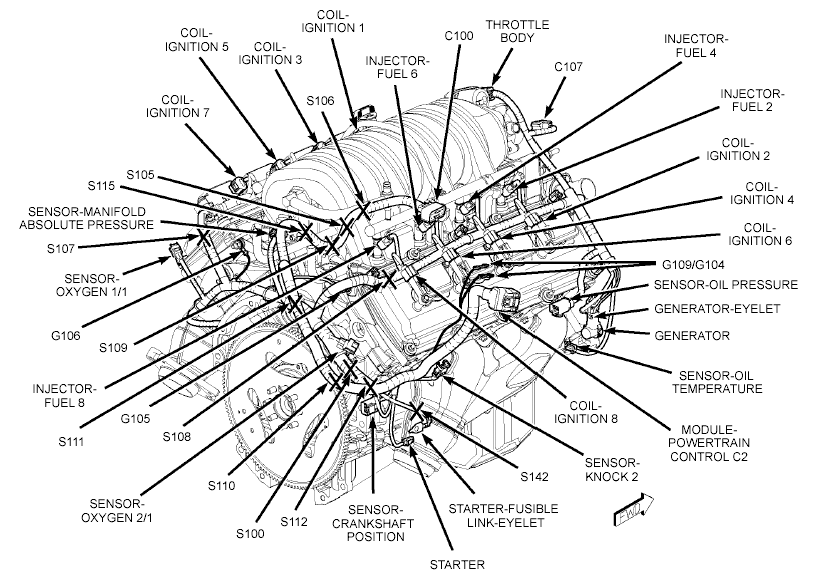

Fig 30: Right Side Of Engine (5.7L & 6.1L)

G00508269

Courtesy of CHRYSLER LLC

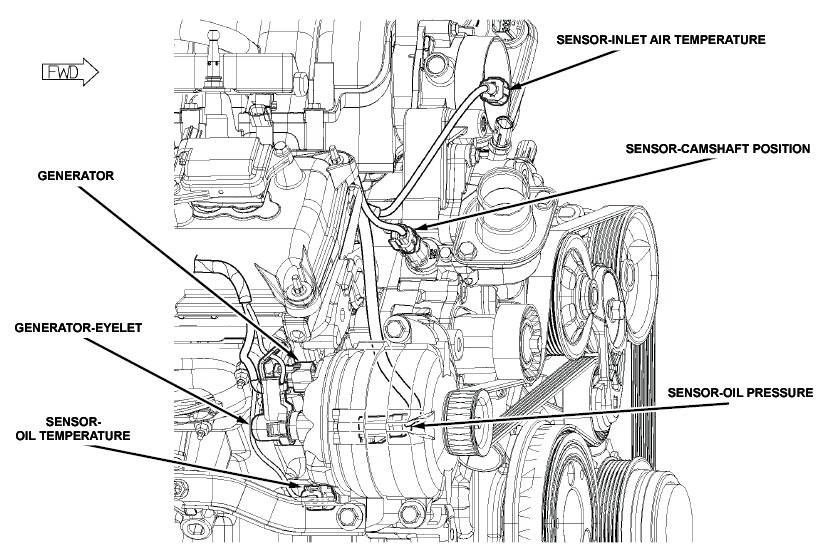

Fig 31: Right Side Of Engine (5.7L & 6.1L)

G00508270

Courtesy of CHRYSLER LLC

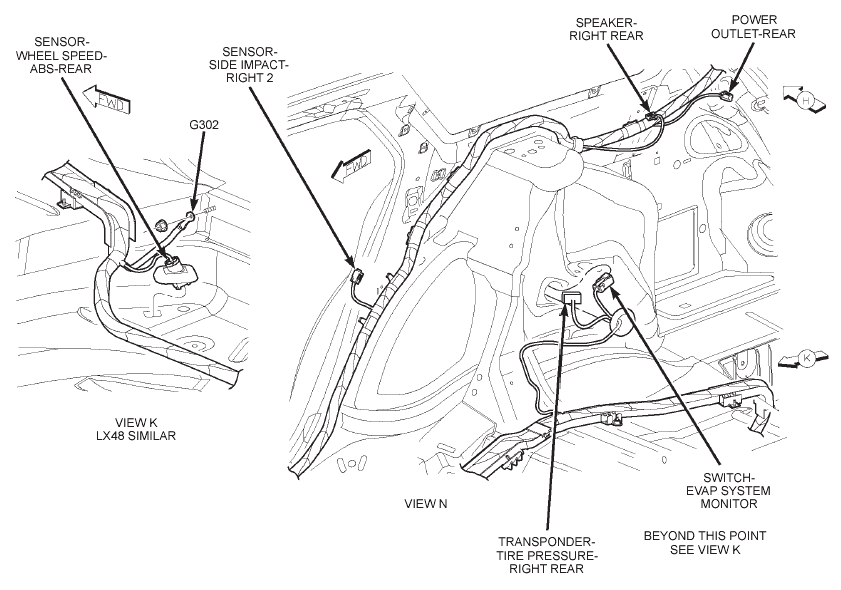

Fig 32: Body Right Rear Quarterpanel

G00508271

Courtesy of CHRYSLER LLC

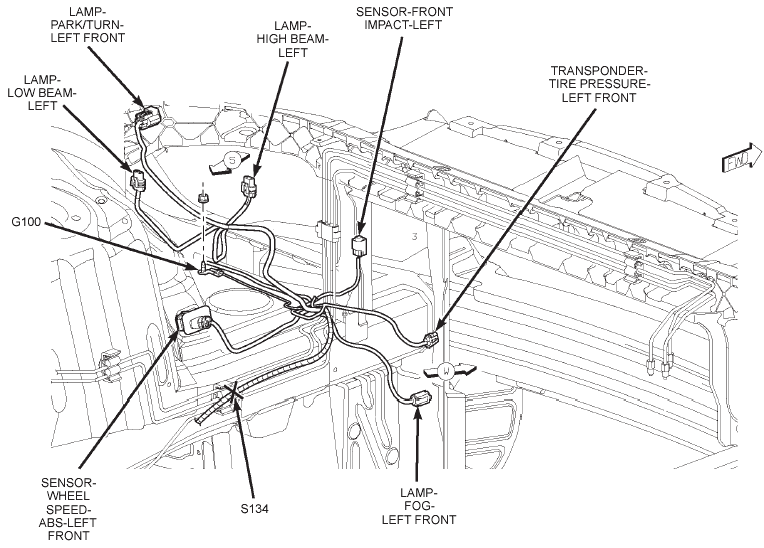

Fig 33: Left Front Of Engine Compartment

G00508272

Courtesy of CHRYSLER LLC

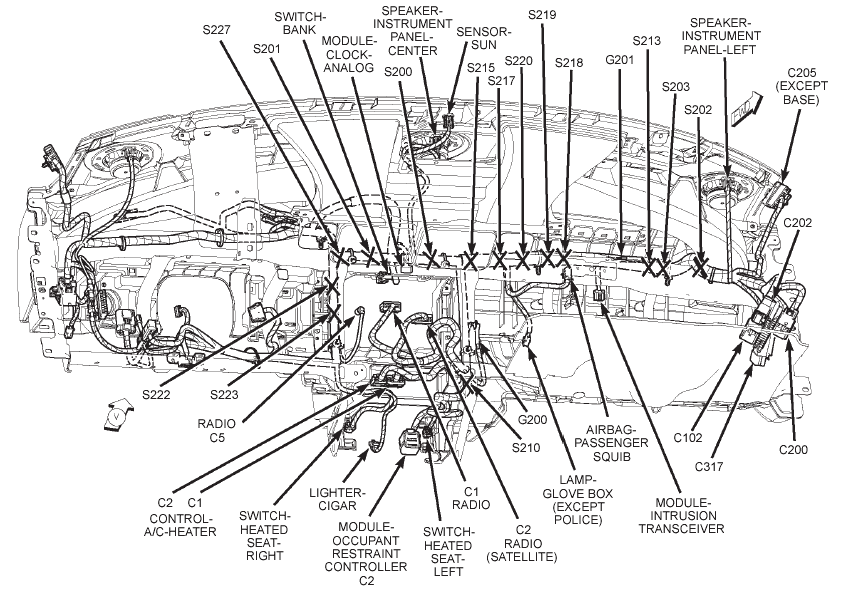

Fig 34: Center/Right Side Of Dash

G00508273

Courtesy of CHRYSLER LLC

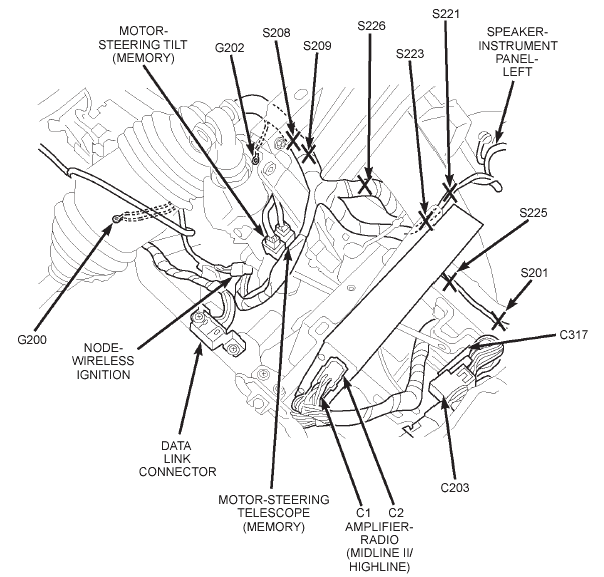

Fig 35: Left Side Of Dash

G00508274

Courtesy of CHRYSLER LLC

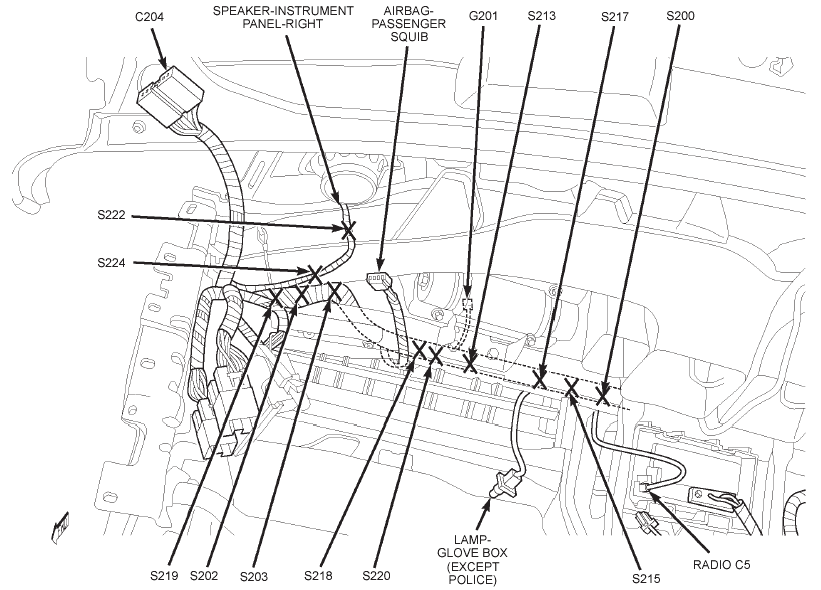

Fig 36: Right Side Of Dash

G00508275

Courtesy of CHRYSLER LLC

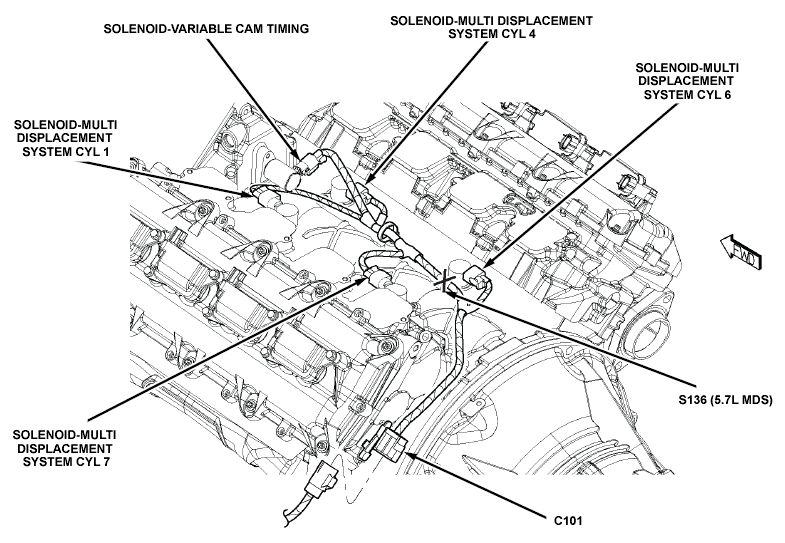

Fig 37: Top Of Engine (5.7L)

G00508276

Courtesy of CHRYSLER LLC

Fig 38: Left Side Of Dash

G00450327

Courtesy of CHRYSLER LLC

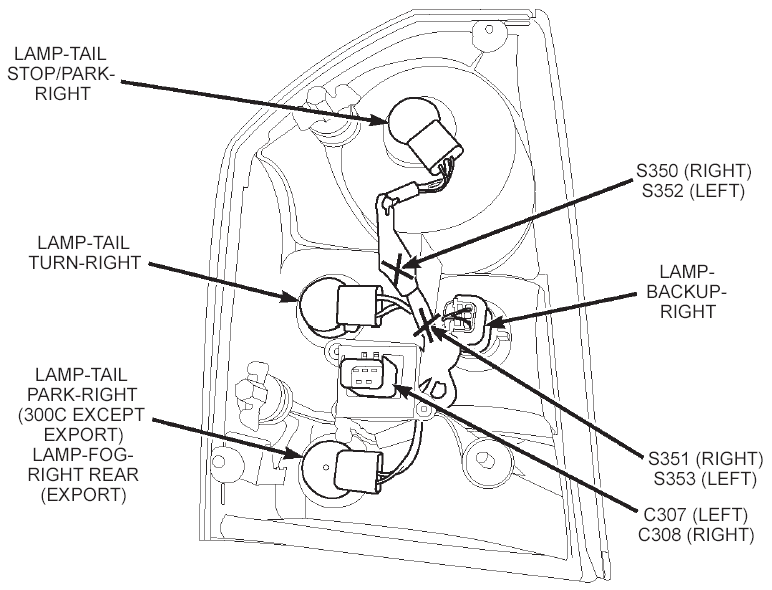

Fig 39: Taillamp

G00508277

Courtesy of CHRYSLER LLC

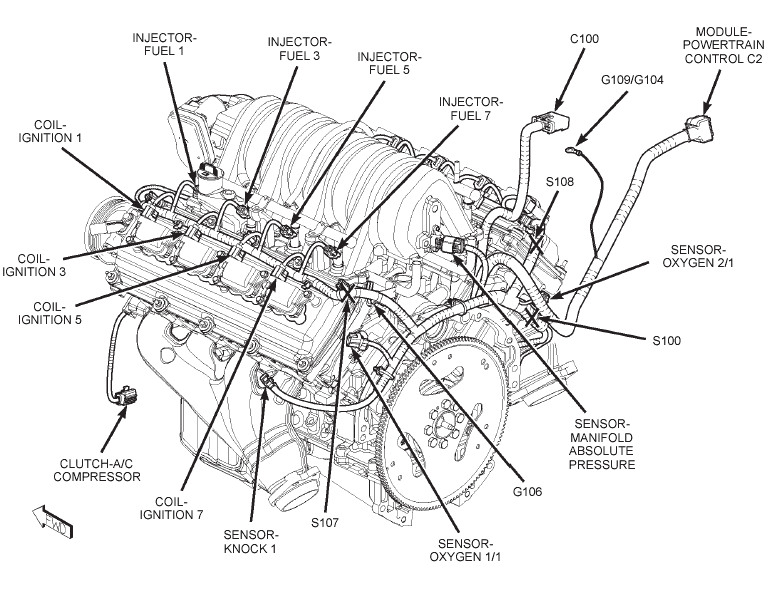

Fig 40: Left Side Of Engine (5.7L & 6.1L)

G00508278

Courtesy of CHRYSLER LLC

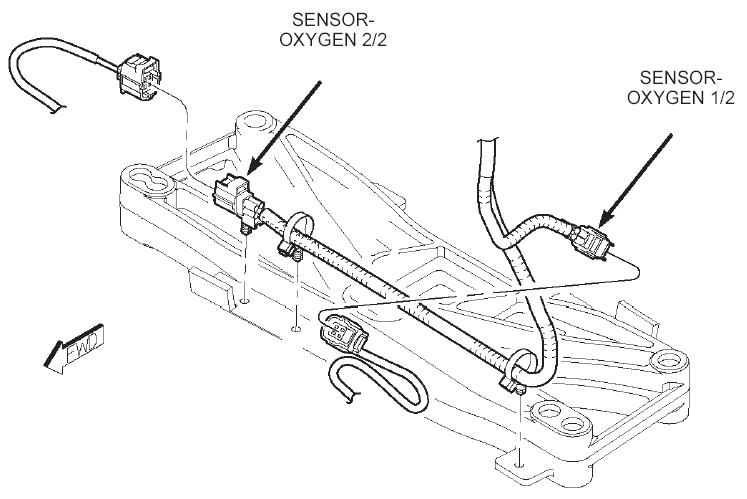

Fig 41: Oxygen Sensors (2.7L & 3.5L)

G00508279

Courtesy of CHRYSLER LLC

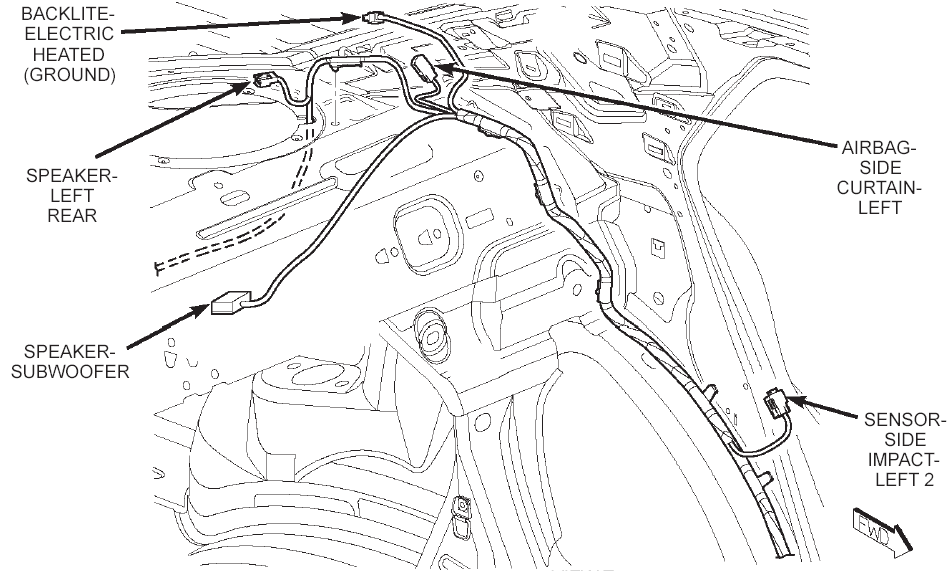

Fig 42: Left Rear Quarterpanel

G00508280

Courtesy of CHRYSLER LLC

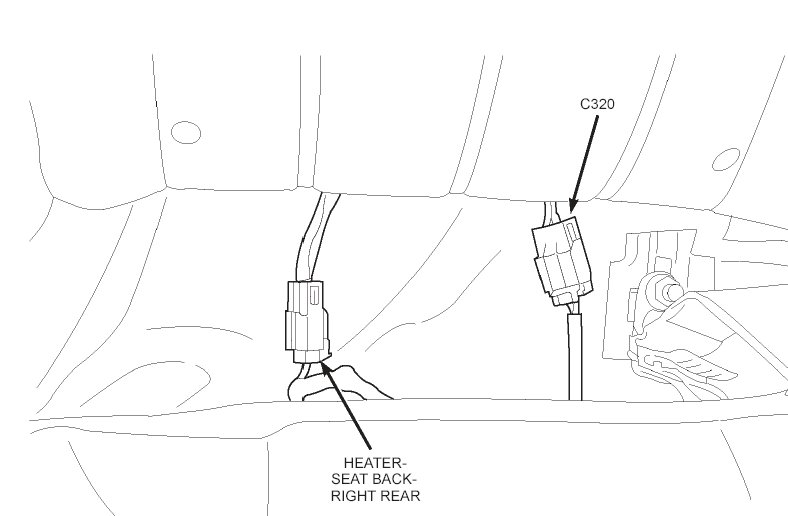

Fig 43: Rear Heated Seat Back

G00508281

Courtesy of CHRYSLER LLC

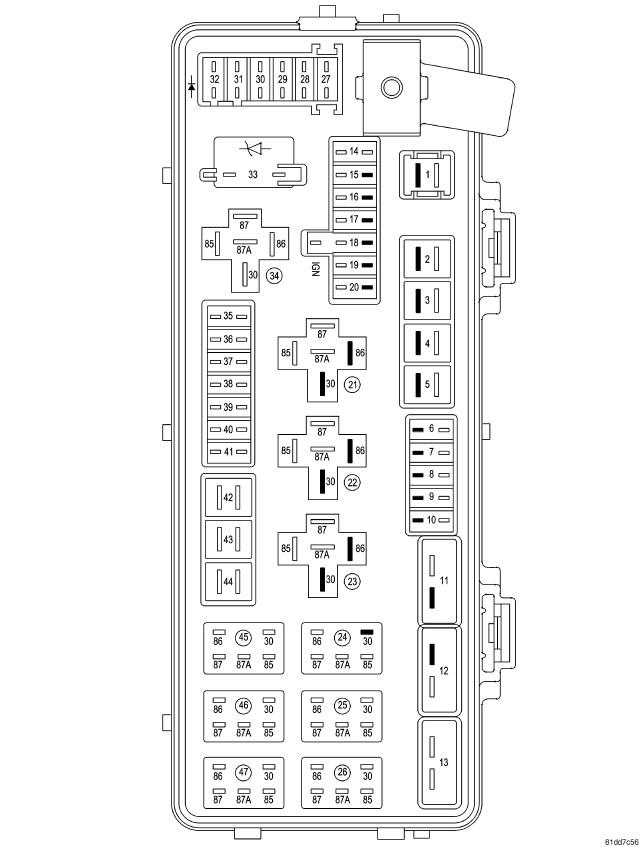

Fig 44: Power Distribution Center

GC0079786

Courtesy of CHRYSLER LLC
