SENSOR, Camshaft Position: Removal: 3.5L

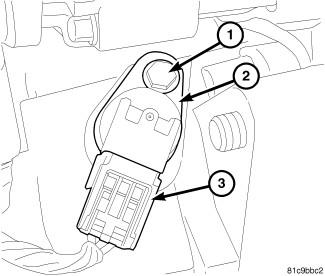

Fig 1: 3.5L CAMSHAFT SENSOR

Courtesy of CHRYSLER LLC

1. Disconnect and isolate the negative battery cable at battery.
2. Disconnect electrical connector (3) from camshaft position (CMP) sensor (2).
3. Remove bolt (1) and CMP sensor (2).
