3.0L Diesel

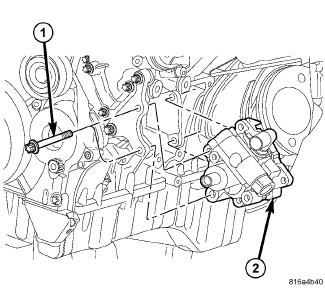

- Align pump (2) with mounting holes in pump mounting brackets on engine.
- Install, but do not tighten, two pump mounting bolts (1) through access holes in pulley.
- Install two mounting bolts (4) fastening front pump mounting bracket (1) to engine. Tighten bolts to 24 N.m (17 ft. lbs.).
- Tighten two pump mounting bolts (1) to 24 N.m (17 ft. lbs.).
NOTE: Always use a NEW O-ring on the end of the pressure hose.
- Lubricate NEW O-ring on end of pressure hose with clean power steering fluid.

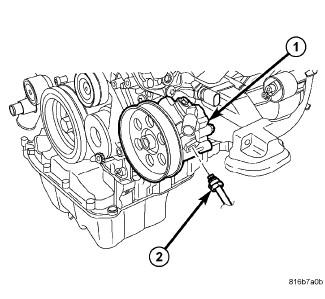

- Install pressure hose to pump (1). Tighten pressure hose tube nut (2) to 47 N.m (35 ft. lbs.).
- Install supply hose (3) on pump (1). Install clamp (2) securing hose in place.
- Install serpentine drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation
- Install intercooler tube resonator.
- Install turbocharger inlet tube.
- Install air cleaner housing. Refer to Engine/Air Intake System/BODY, Air Cleaner - Installation
- Install engine cover.
- Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to Electrical/Battery System - Standard Procedure
- Fill and bleed power steering system. See Steering - Standard Procedure
