Steering System: Pump: Installation: 2.7L/3.5L

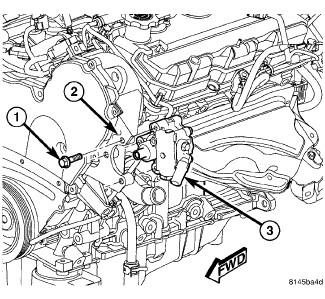

Fig 1: POWER STEERING PUMP - 3.5L

Courtesy of CHRYSLER LLC

1. Align pump (3) with mounting holes on engine bracket (2).
2. Install three pump mounting bolts (1) through access holes in pulley and engine bracket. Tighten bolts to 28 N.m (21 ft. lbs.) torque.

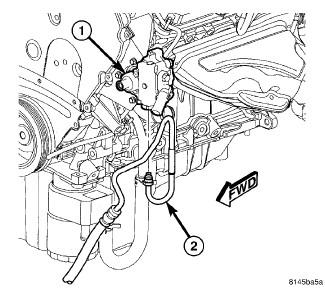

   Fig 2: PRESSURE HOSE AT PUMP - 3.5L

   Courtesy of CHRYSLER LLC
   NOTE: Always use a NEW O-ring on the end of the pressure hose.
3. Lubricate NEW O-ring on end of pressure hose with clean power steering fluid.
4. Install pressure hose (2) to pump (1). Tighten pressure hose tube nut to 47 N.m (35 ft. lbs.) torque.

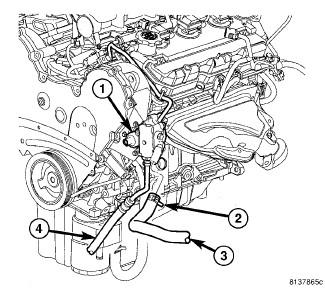

   Fig 3: SUPPLY HOSE 3.5L

   Courtesy of CHRYSLER LLC
5. Install supply hose (3) on pump. Install clamp (2) securing hose in place.
6. Install serpentine drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Installation
7. Install air cleaner housing and inlet tube. Refer to Engine/Air Intake System/BODY, Air Cleaner - Installation
   Fig 4: BATTERY AND CABLES

   Courtesy of CHRYSLER LLC
8. Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to Electrical/Battery System - Standard Procedure
9. Fill and bleed power steering system. See Steering - Standard Procedure
