Checking The Cooling Fan Performance: Notes

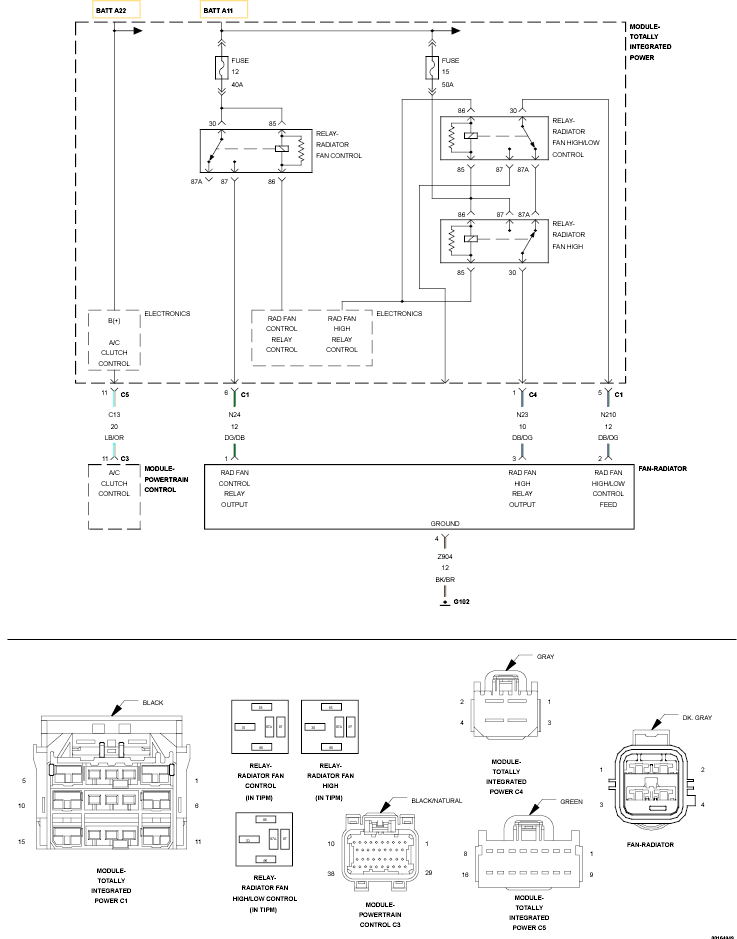

Fig 1: Cooling Fan Control - Circuit Schematic

GC0098261

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
