Checking The Ignition Coil Performance - 2.7/3.5: Notes

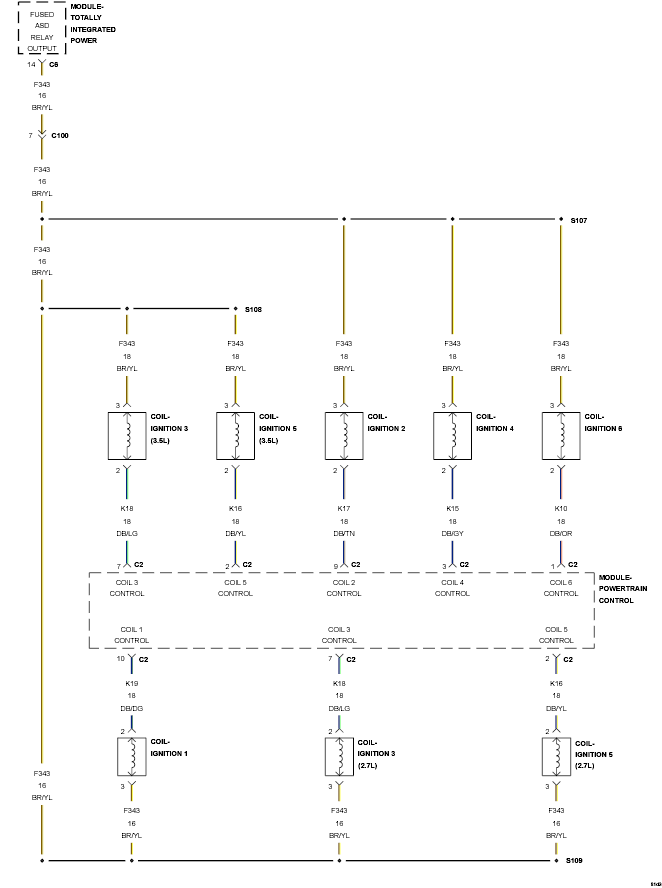

Fig 1: Ignition Coil - Circuit Schematic (2.7L/3.5L)

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article(s).
