Home >> Chrysler >> 2009 >> Sebring Touring, 2D Convertible, Gas >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2016 To P2135 - NGC >> P2116-Accelerator Pedal Position Sensor 2 Minimum Stop Performance >> Notes

P2116-Accelerator Pedal Position Sensor 2 Minimum Stop Performance: Notes

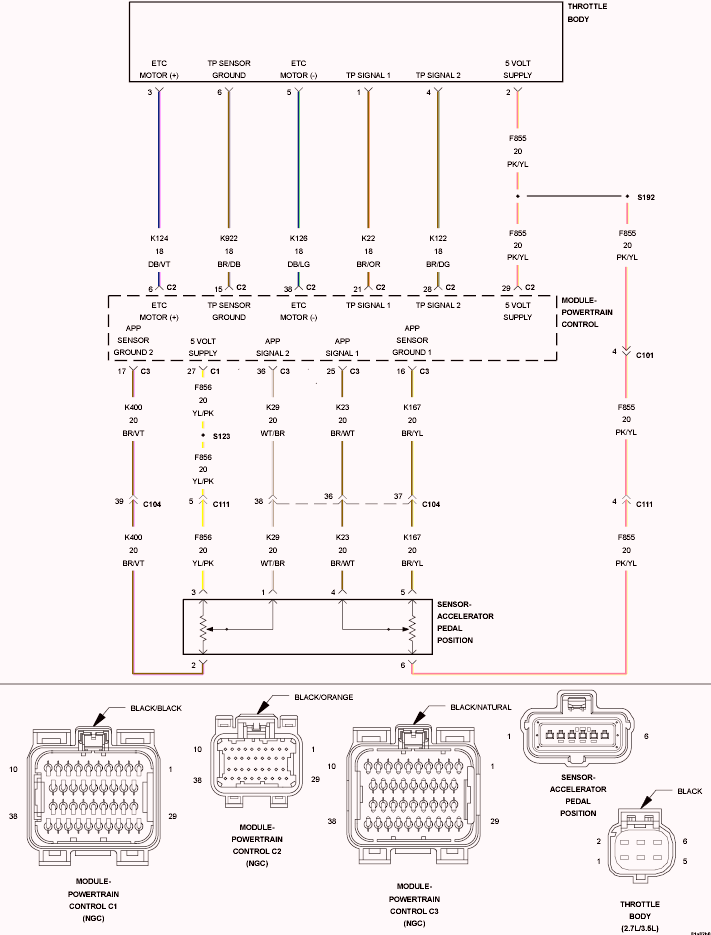

Fig 1: Accelerator Pedal Position Sensor 2 Circuit

GC0123949

Courtesy of CHRYSLER LLC
