P2107-Electronic Throttle Control Module Processor: Notes

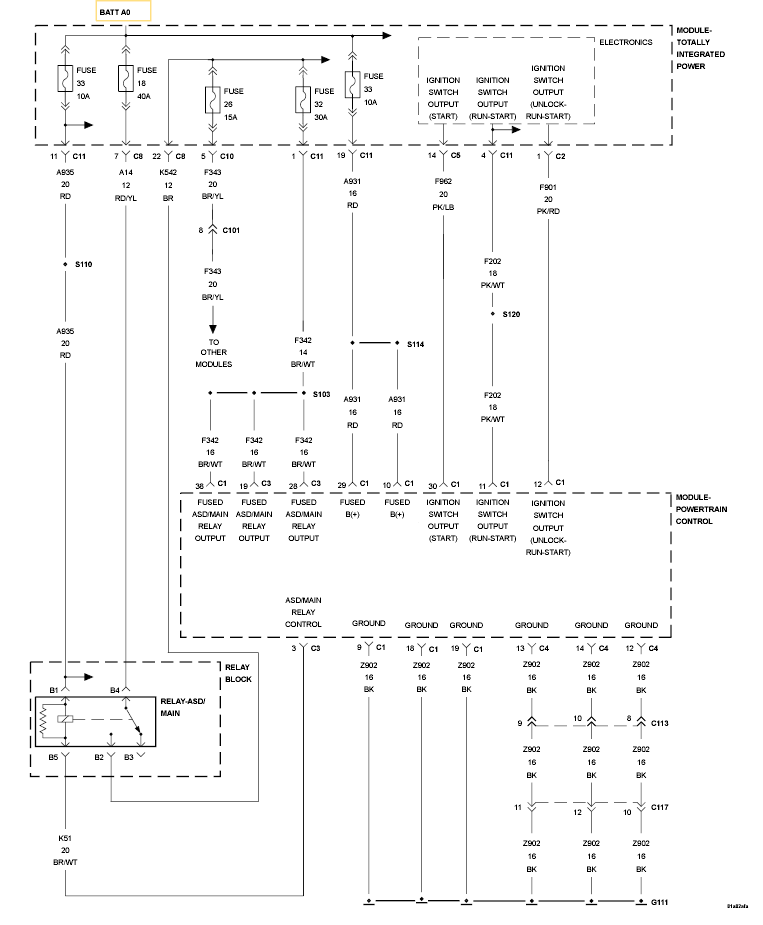

Fig 1: PCM Internal Shutdown Timer Circuit

GC0123944

Courtesy of CHRYSLER LLC
