P2077-Intake Manifold Tuning Valve Position Sensor Circuit Low: Notes

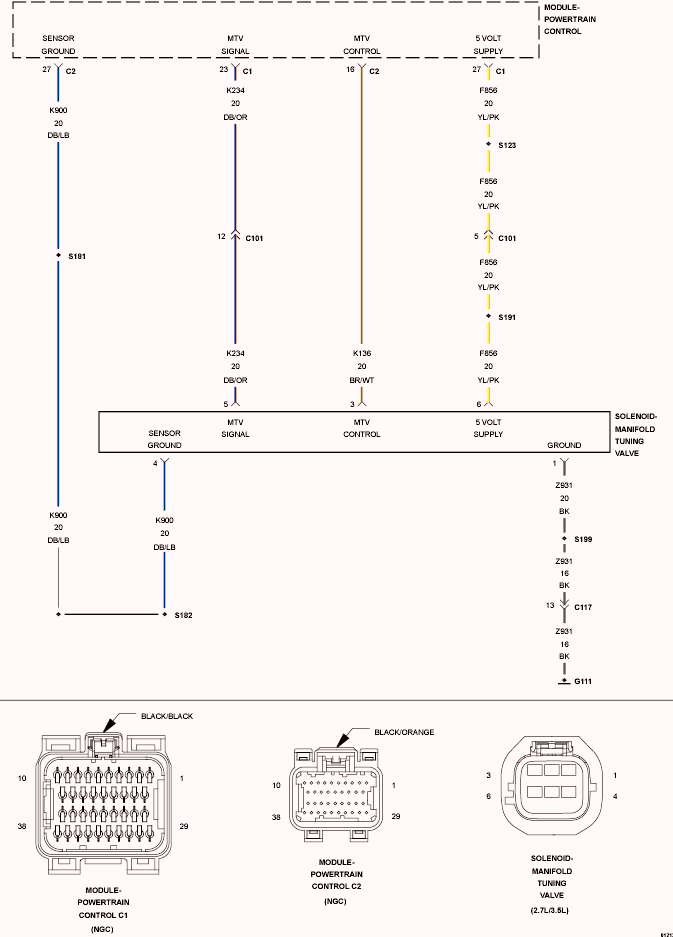

Fig 1: Manifold Tuning Valve (MTV) Control Circuit

GC0123940

Courtesy of CHRYSLER LLC
