SWITCH, Ignition: Installation: Installation

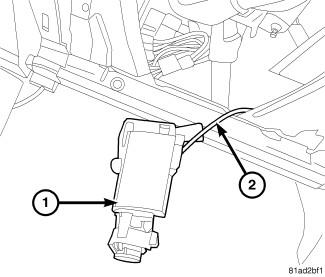

Fig 1: Interlock Cable

Courtesy of CHRYSLER LLC

1 - Ignition Switch Assembly

2 - Shift Interlock Cable

1. Install shift interlock cable to ignition switch. Refer to Transmission and Transfer Case/Automatic - 40TE/CABLE, Shift Interlock - Installation .

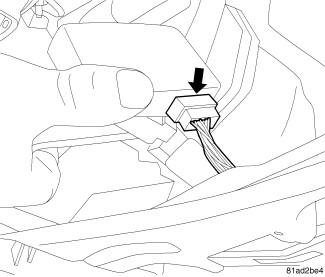

   Fig 2: Module Electrical Connector

   Courtesy of CHRYSLER LLC
2. Push ignition switch up into connect electrical connectors.
   Fig 3: Housing Bracket

   Courtesy of CHRYSLER LLC
3. Install location "t" on ignition switch into slot on instrument panel.
4. Pull ignition switch into place.

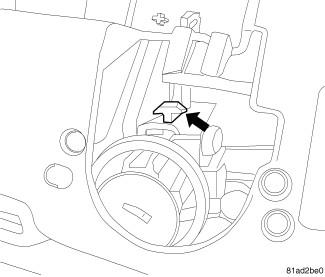

   Fig 4: Switch Locating Pins

   Courtesy of CHRYSLER LLC
5. Make sure that location pins are in place.

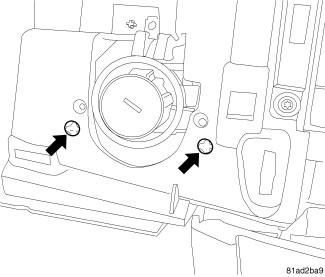

   Fig 5: Switch Mounting Screws

   Courtesy of CHRYSLER LLC
6. Install two front mounting screws and tighten.

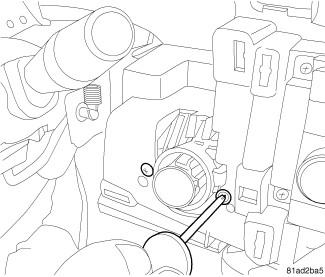

   Fig 6: Rear Mounting Screw And Washer

   Courtesy of CHRYSLER LLC
7. Rear mounting screw and washer.
   Fig 7: Switch Rear Mounting Screw

   Courtesy of CHRYSLER LLC
8. Install rear mounting screw and washer and tighten.

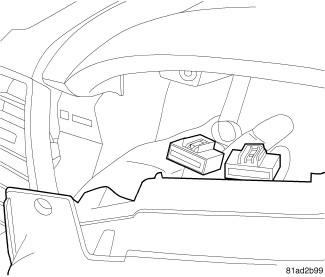

   Fig 8: Cluster Connectors

   Courtesy of CHRYSLER LLC
9. Connect two electrical connectors to the back of the instrument cluster

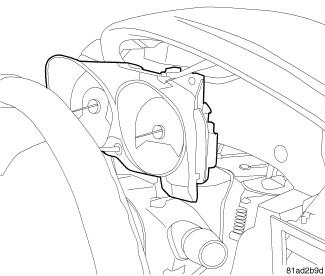

   Fig 9: Cluster Relocated

   Courtesy of CHRYSLER LLC
10. Relocate instrument cluster and install. Refer to Electrical - Instrument Cluster/Instrument Cluster - Installation .
    Fig 10: Switch Cover

    Courtesy of CHRYSLER LLC
11. Install instrument cluster bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Cluster - Installation .

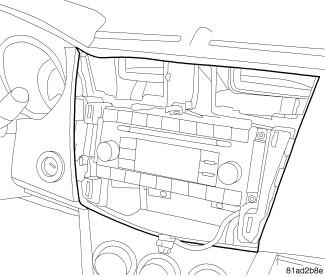

    Fig 11: Center Stack Bezel

    Courtesy of CHRYSLER LLC
12. Install radio bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Installation .

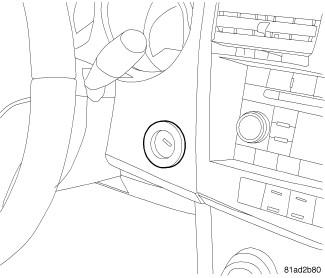

    Fig 12: Ignition Switch

    Courtesy of CHRYSLER LLC
13. Connect negative battery cable.
14. Adjust shift interlock if necessary. Refer to Transmission and Transfer Case/Automatic - 40TE/CABLE, Shift Interlock - Adjustments .
