Left Front Fog Lamp Connector End View

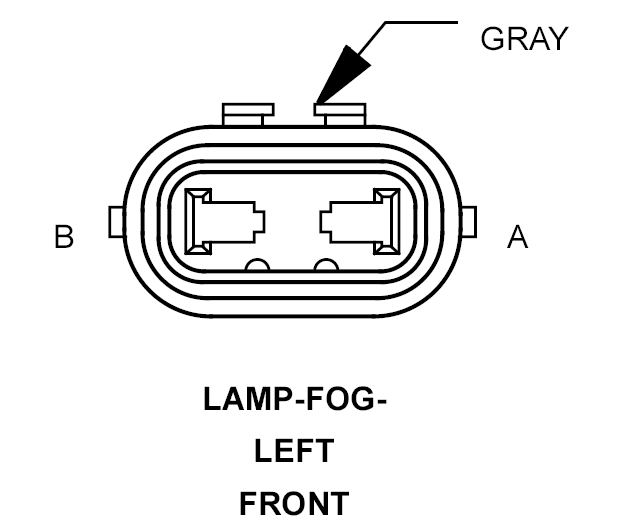

LAMP-FOG-LEFT FRONT - GRAY 2 WAY

GJS880195Courtesy of CHRYSLER CORP.
CAV CIRCUIT FUNCTION
A L89 18WT/YL FRONT FOG LAMP CONTROL OUTPUT
B Z901 18BK GROUND
