Home >> Chrysler >> 2009 >> Sebring Limited, 2D Convertible >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0645 To P2008 - NGC >> P1593-Speed Control Switch 1/2 Stuck >> Notes

P1593-Speed Control Switch 1/2 Stuck: Notes

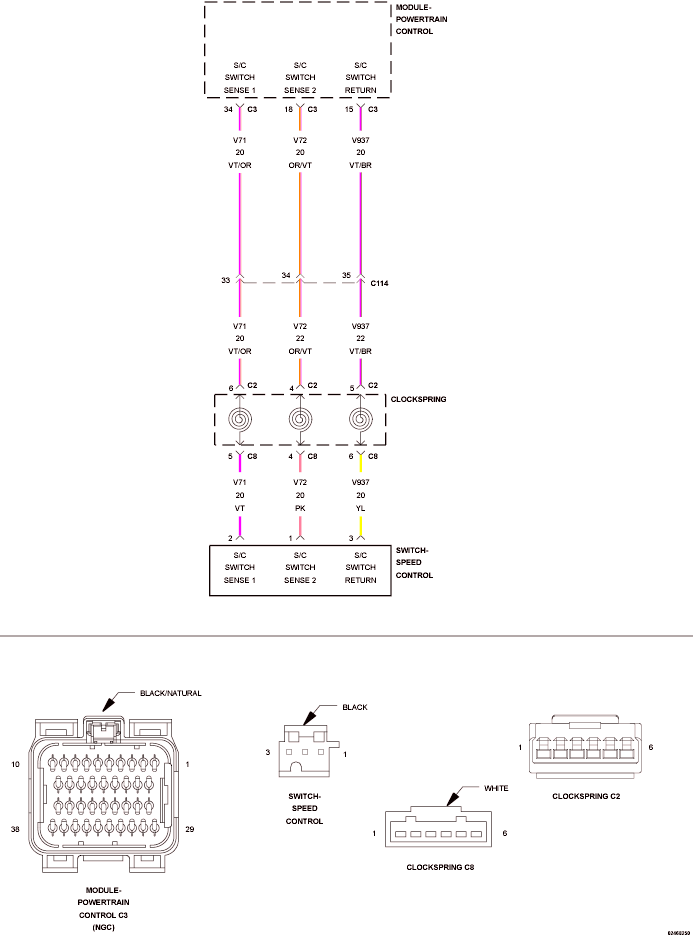

Fig 1: Speed Control Switch Circuit

GC0123929

Courtesy of CHRYSLER LLC
