P1404-EGR Close Position Performance: Notes

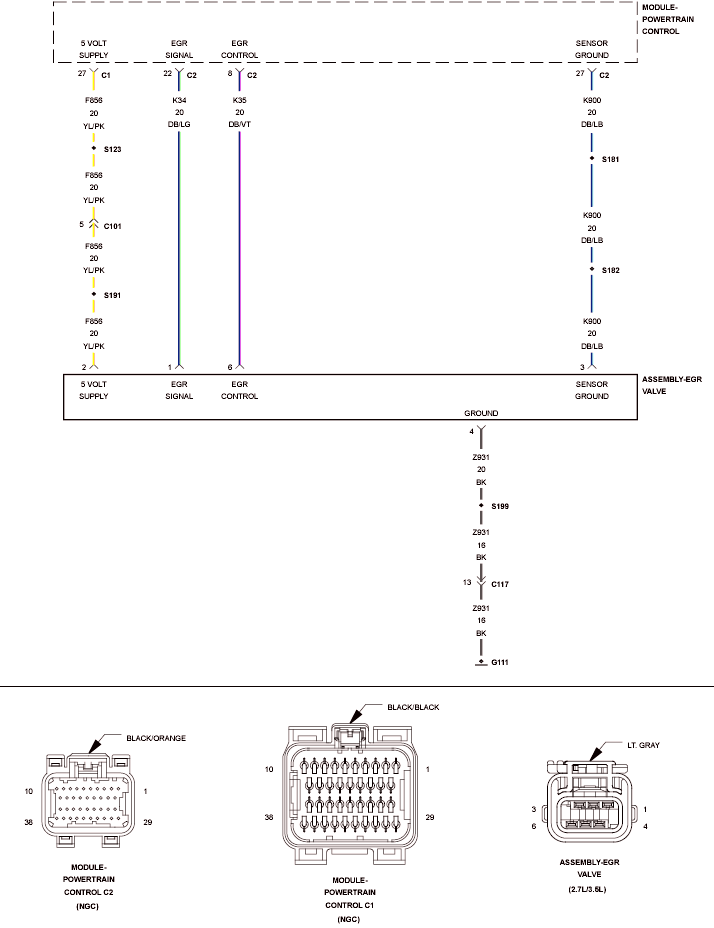

Fig 1: EGR Control Circuit

GC0123915

Courtesy of CHRYSLER LLC
