P1004-Short Runner Valve Control Performance: Notes

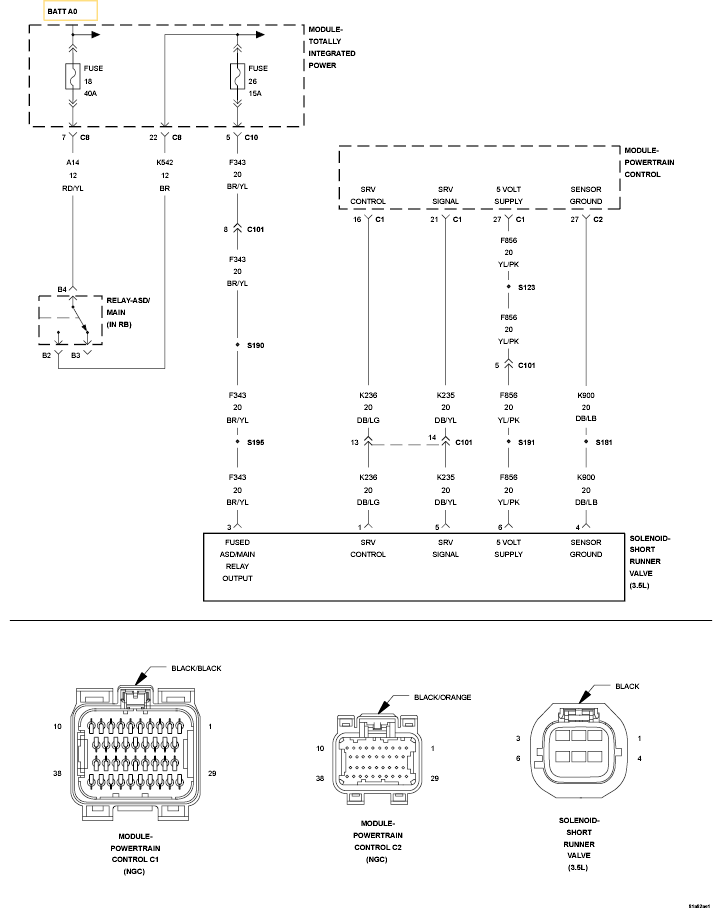

Fig 1: Short Runner Valve Control Circuit

GC0123942

Courtesy of CHRYSLER LLC
