P0645-A/C Control Circuit/Open: Notes

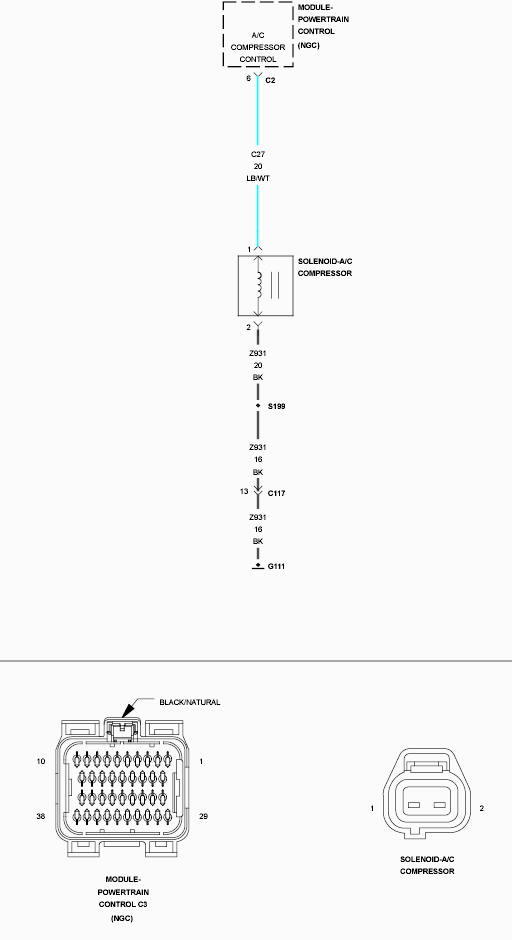

Fig 1: A/C Control Circuit

GC0123938

Courtesy of CHRYSLER LLC
