Home >> Chrysler >> 2009 >> Sebring Limited, 2D Convertible >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0573 To P0643 - NGC >> P0627-Fuel Pump Control Circuit >> Notes

P0627-Fuel Pump Control Circuit: Notes

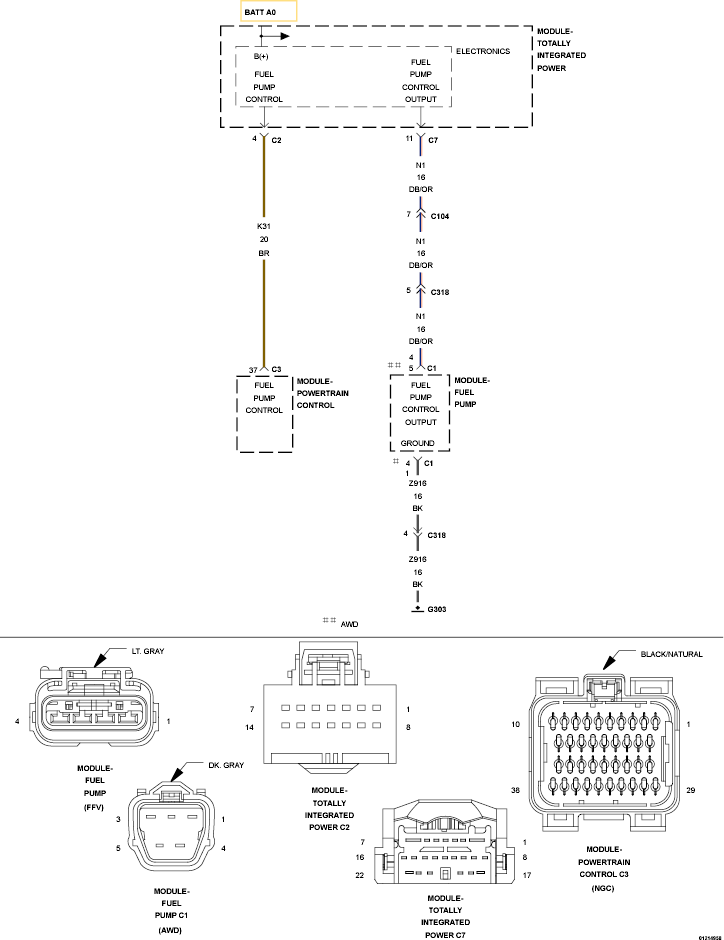

Fig 1: Fuel Pump Control Circuit

GC0123933

Courtesy of CHRYSLER LLC
