P0622-Generator Field Control Circuit: Notes

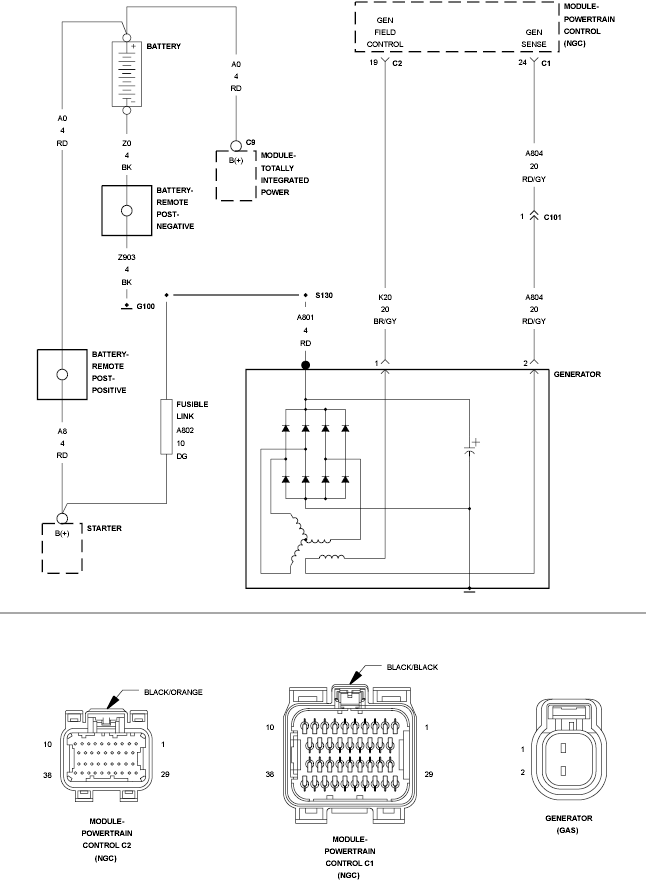

Fig 1: Charging System Circuit

GC0123921

Courtesy of CHRYSLER LLC
