Throttle Body: Installation: 2.7L

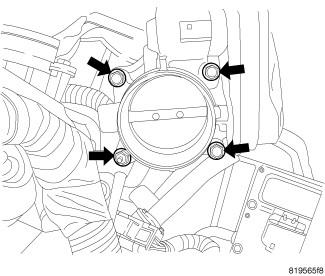

Fig 1: THROTTLE BODY BOLTS

Courtesy of CHRYSLER LLC

NOTE: Make sure the intake gasket is clean and free of debris. Inspect the intake gasket for damage. Replace as necessary.

CAUTION: DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts and/or the intake manifold.

Install throttle body, gasket and bolts to intake manifold.
CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a crisscross pattern to specification.
Tighten the three bolts and one stud in a mandatory torque crisscross pattern sequence to 5.5 N.m (50 in. lbs.).

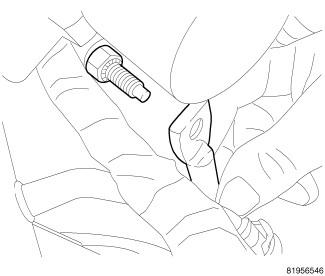

Fig 2: BRACE FOR THROTTLE BODY
Courtesy of CHRYSLER LLC
Install throttle body support bracket to the throttle body stud and the stud located on the transmission.

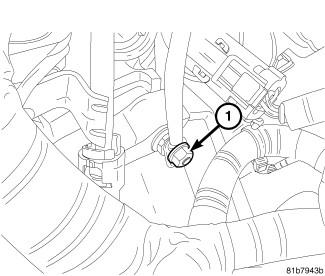

Fig 3: LOWER THROTTLE BODY BRACKET NUT
Courtesy of CHRYSLER LLC
Install lower throttle body bracket nut (1). Tighten to 28 N.m (20.5 ft. lbs.).

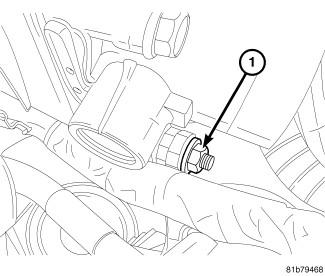

Fig 4: UPPER THROTTLE BODY BRACKET NUT
Courtesy of CHRYSLER LLC
Install upper throttle body bracket nut (1). Tighten to 12 N.m (106 in. lbs.).

Fig 5: INLET HOSE AND ELECT CONNECTION
Courtesy of CHRYSLER LLC
Connect electrical connector (2) to throttle body.
Install throttle body air intake hose and tighten clamp (1).
Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
Use a scan tool and perform the ETC RELEARN function.
