P2183-Engine Coolant Temperature Sensor 2 Circuit Performance: Notes

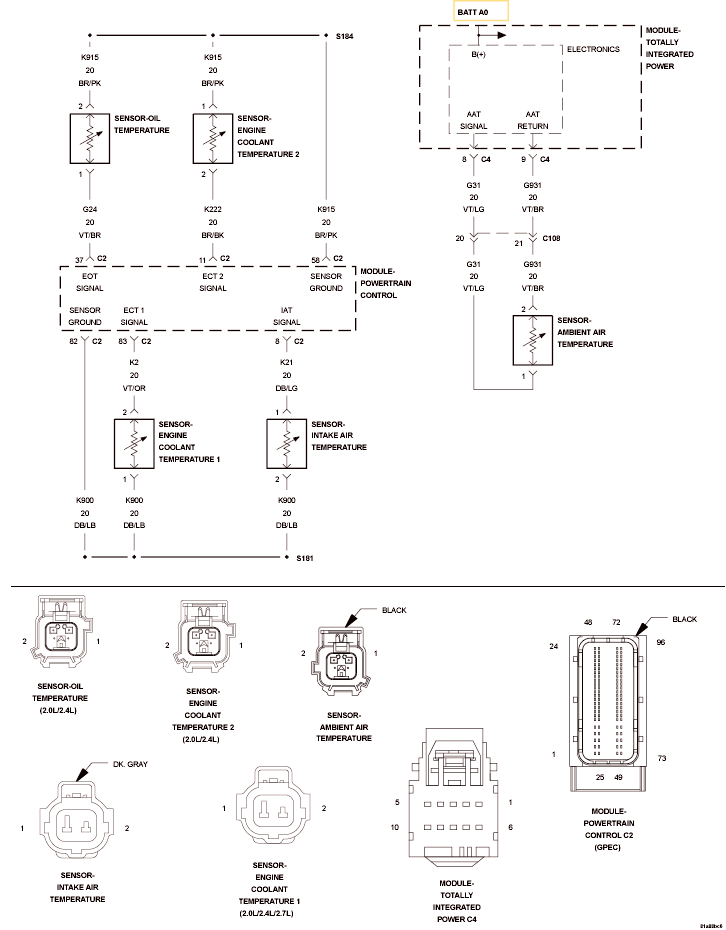

Fig 1: Engine Coolant Temperature Sensor Circuit

GC0123816

Courtesy of CHRYSLER LLC
