Courtesy Console Lamp (Convertible) Connector End View

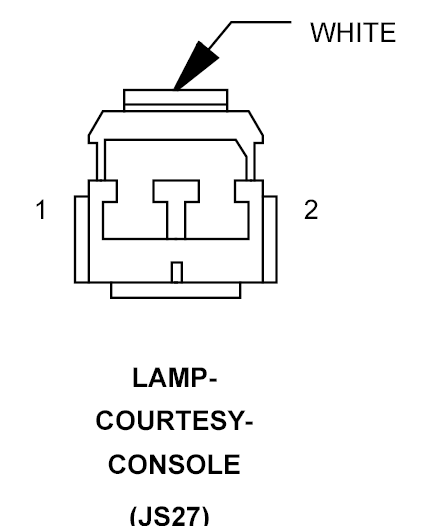

LAMP-COURTESY-CONSOLE - WHITE 2 WAY (JS27)

GJS880192Courtesy of CHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 M24 20YL/WT COURTESY LAMPS DRIVER
2 Z907 20BK GROUND
