P2118-Electronic Throttle Control Motor Current Performance: Notes

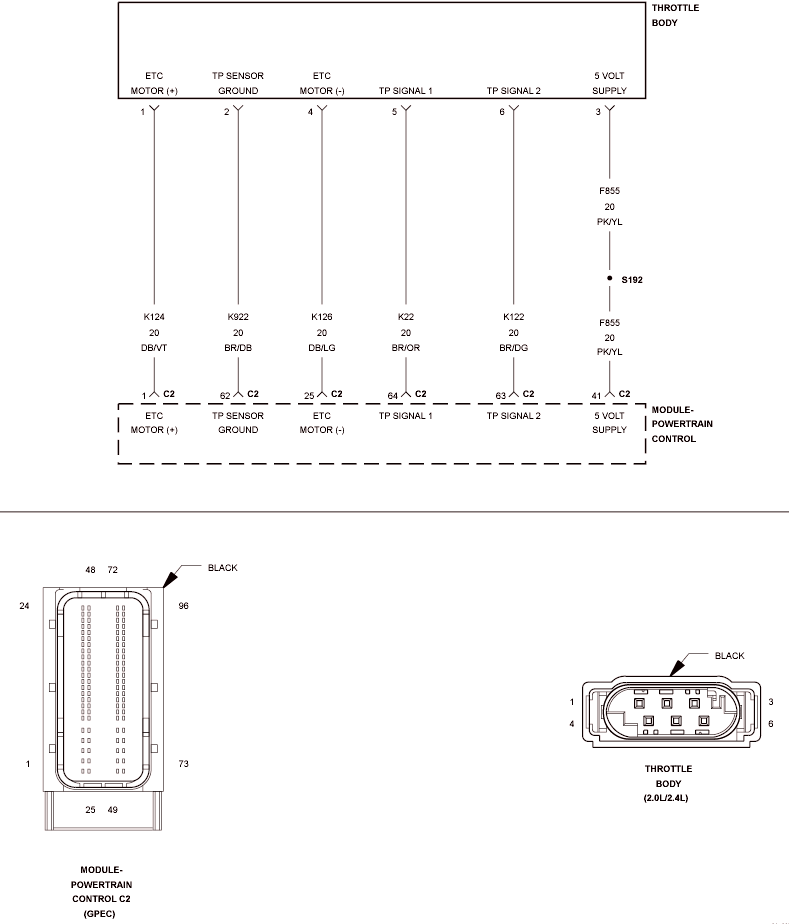

Fig 1: Throttle Position Sensor Circuit

GC0123824

Courtesy of CHRYSLER LLC
