P2017-Intake Manifold Runner Position Sensor Circuit High: Notes

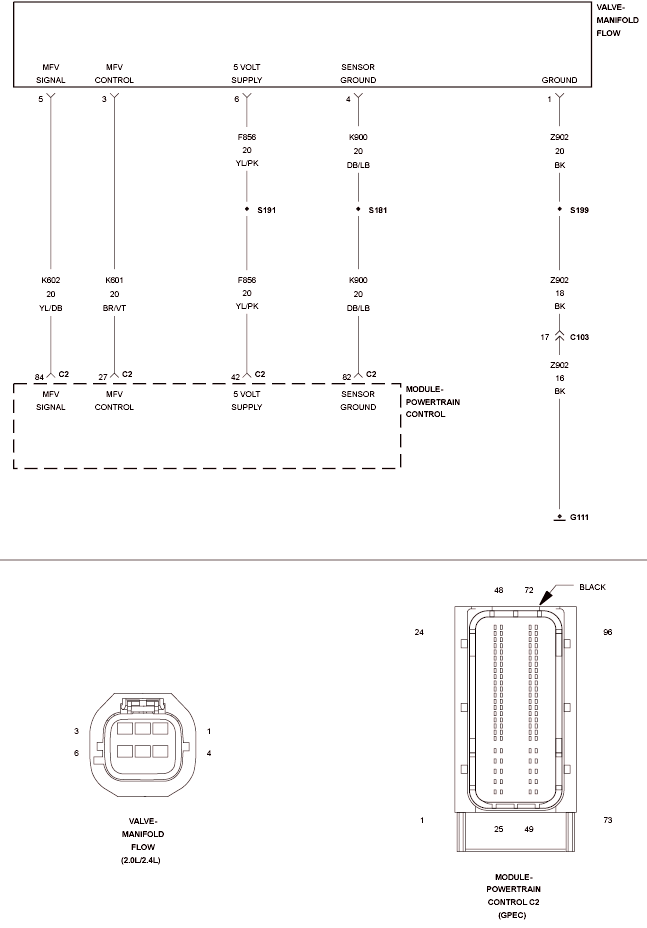

Fig 1: Intake Manifold Runner Control Circuit

GC0123865

Courtesy of CHRYSLER LLC
