P0629-Fuel Pump Control Circuit High: Notes

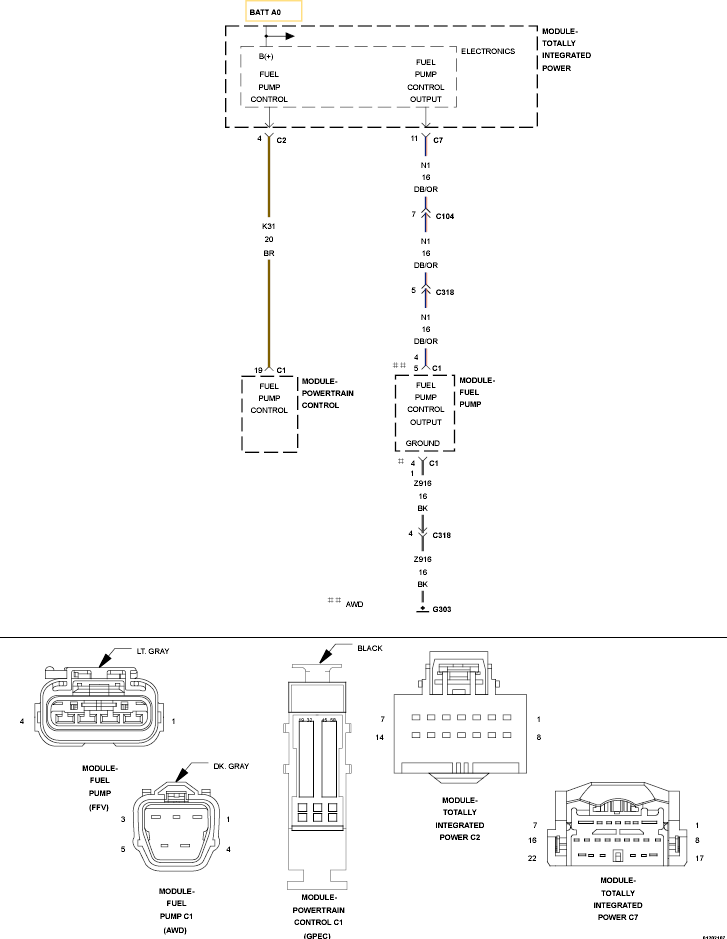

Fig 1: Fuel Pump Control Circuit

GC0123861

Courtesy of CHRYSLER LLC
