P0615-Starter Control Circuit Open: Notes

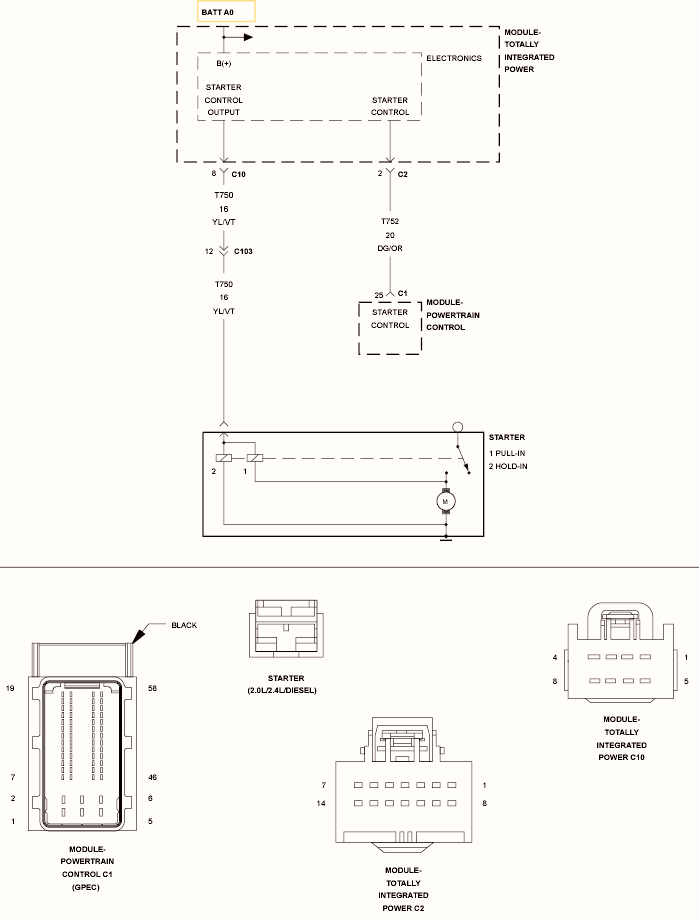

Fig 1: Starter Control Circuit

GC0123860

Courtesy of CHRYSLER LLC
