CABLE, Shift: Installation: Installation

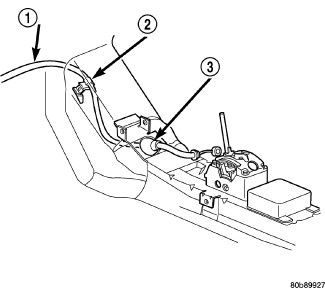

Fig 1: Gearshift Cable Routing

Courtesy of CHRYSLER LLC

1 - CABLE

2 - RETAINER CLIP

3 - GROMMET

1. Install cable assembly into floor pan tunnel hole and secure grommet (3) . If necessary, use a synthetic based lubricant to aid in grommet installation.
2. Position cable into retainer clip (2) and tighten clip to secure cable. Route cable (1) up towards transaxle shift lever.
3. Lower vehicle.

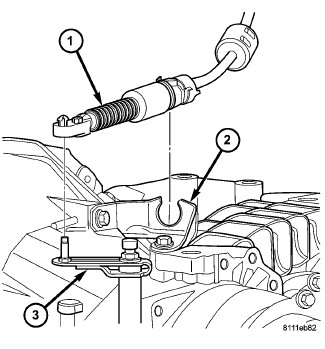

   Fig 2: Gearshift Cable at Transaxle

   Courtesy of CHRYSLER LLC

   1 - GEARSHIFT CABLE

   2 - BRACKET

   3 - MANUAL VALVE LEVER

4. Install cable (1) to bracket (2).
5. Install cable to transaxle shift lever (3).
   Fig 3: Gearshift Cable at Floor Shifter

   Courtesy of CHRYSLER LLC

   1 - CLIP

   2 - CABLE

   3 - CONDUIT BRACKET

   4 - SHIFT PIN

6. Connect cable (2) to shifter conduit bracket (3) and shift pin (4). Install cable retaining clip (1).

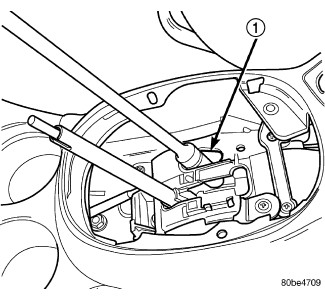

   Fig 4: Shift Cable Adjust Lever Nut-Typical

   Courtesy of CHRYSLER LLC

   1 - ACCESS HOLE

7. Verify transaxle shift lever and floor shifter lever are in the PARK position.
8. Tighten cable adjuster nut to 23 N.m (200 in. lbs.).

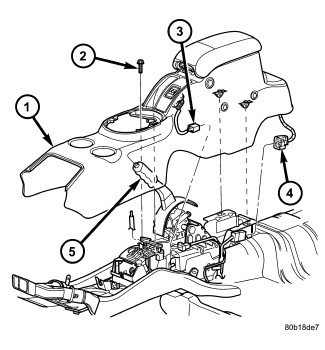

   Fig 5: Center Console Assembly

   Courtesy of CHRYSLER LLC

   1 - CENTER CONSOLE

   2 - SCREW

   3 - ELECTRICAL CONNECTOR

   4 - ELECTRICAL CONNECTOR

   5 - PARK BRAKE HANDLE

9. Install center console assembly (1) .

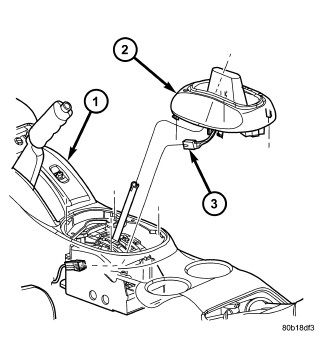

   Fig 6: Gearshift Bezel

   Courtesy of CHRYSLER LLC

   1 - CENTER CONSOLE ASSEMBLY

   2 - GEARSHIFT BEZEL

   3 - LAMP CONNECTOR

10. Install gearshift bezel (2) .

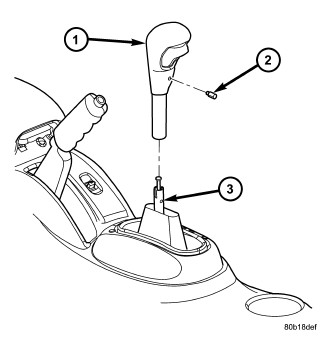

    Fig 7: Gearshift Knob

    Courtesy of CHRYSLER LLC

    1 - GEARSHIFT KNOB

    2 - SET SCREW

    3 - GEARSHIFT MECHANISM

11. Install gearshift knob (1) and tighten set screw (2) to 2 N.m (20 in. lbs.).
12. Verify proper cable adjustment. Engine starter should only engage in PARK and NEUTRAL gear shifter positions. If adjustment is required, refer to ADJUSTMENTS.
