2.7L Engine

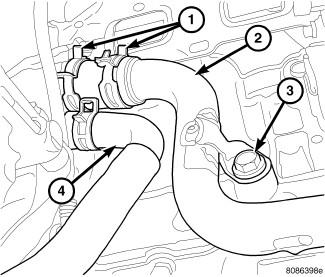

Fig 1: Thermostat and Housing - 2.7L Engine
GC0082355Courtesy of CHRYSLER LLC
1 - HOSE CLAMPS
2 - RADIATOR HOSE TUBE
3 - MOUNTING BOLT
4 - RADIATOR HOSE
  1. Clean gasket sealing surfaces.
    NOTE: Install thermostat with the bleed valve located at the 12 o'clock position.
  2. Install thermostat and gasket into the thermostat housing.
  3. Install thermostat and housing to cylinder block. Tighten attaching bolts to 12 N.m (105 in. lbs.).
  4. Install radiator hose tube (2) to thermostat and housing. Connect hose clamps (1) at thermostat housing. Install radiator hose tube mounting bolt (3).
  5. Install generator and attaching bolts.
    CAUTION: Before removing plug in oil pan, clean residual coolant from area.
  6. Remove plug in oil pan and install engine oil dipstick tube.
  7. Reconnect AC clutch and AC pressure sensor connectors.
  8. Reconnect generator connectors.
  9. Raise vehicle on hoist.
  10. Install accessory drive belts. See Cooling/Accessory Drive/BELT, Serpentine - Installation .
  11. Install belt splash shield and right front wheel.
  12. Lower vehicle.
  13. Reconnect negative battery cable.
  14. Fill cooling system. See Cooling - Standard Procedure .
