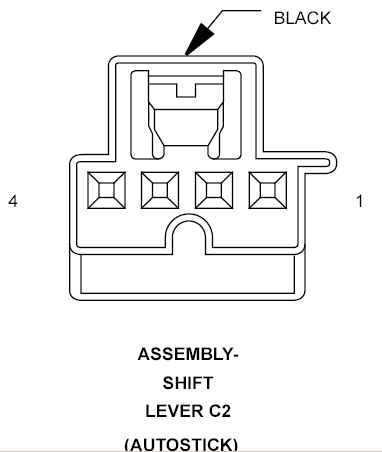

Shift Lever Assembly (Autostick) Connector End View (C2)
ASSEMBLY-SHIFT LEVER C2 - BLACK 4 WAY (AUTOSTICK)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
T44 20YL/DG |
AUTOSTICK DOWNSHIFT SIGNAL |
| 3 |
T5 20DG/YL |
AUTOSTICK UPSHIFT SIGNAL |
| 4 |
Z907 20BK |
GROUND |
