MODULE, Power Top Control: Removal: Removal

WARNING: This page is about a different car, the 2010 Dodge Avenger and 2010 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

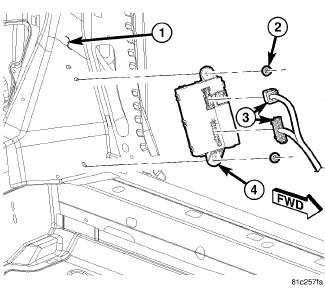

Fig 1: PTCM Electrical Connectors
GC0120940Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the left lower quarter trim panel. Refer to Body/Interior/PANEL, Quarter Trim - Removal .
  3. Disconnect the Power Top Control Module (PTCM) electrical connectors (3).
  4. Remove the two PTCM retaining nuts (2).
  5. Remove the PTCM (4) from the vehicle.
